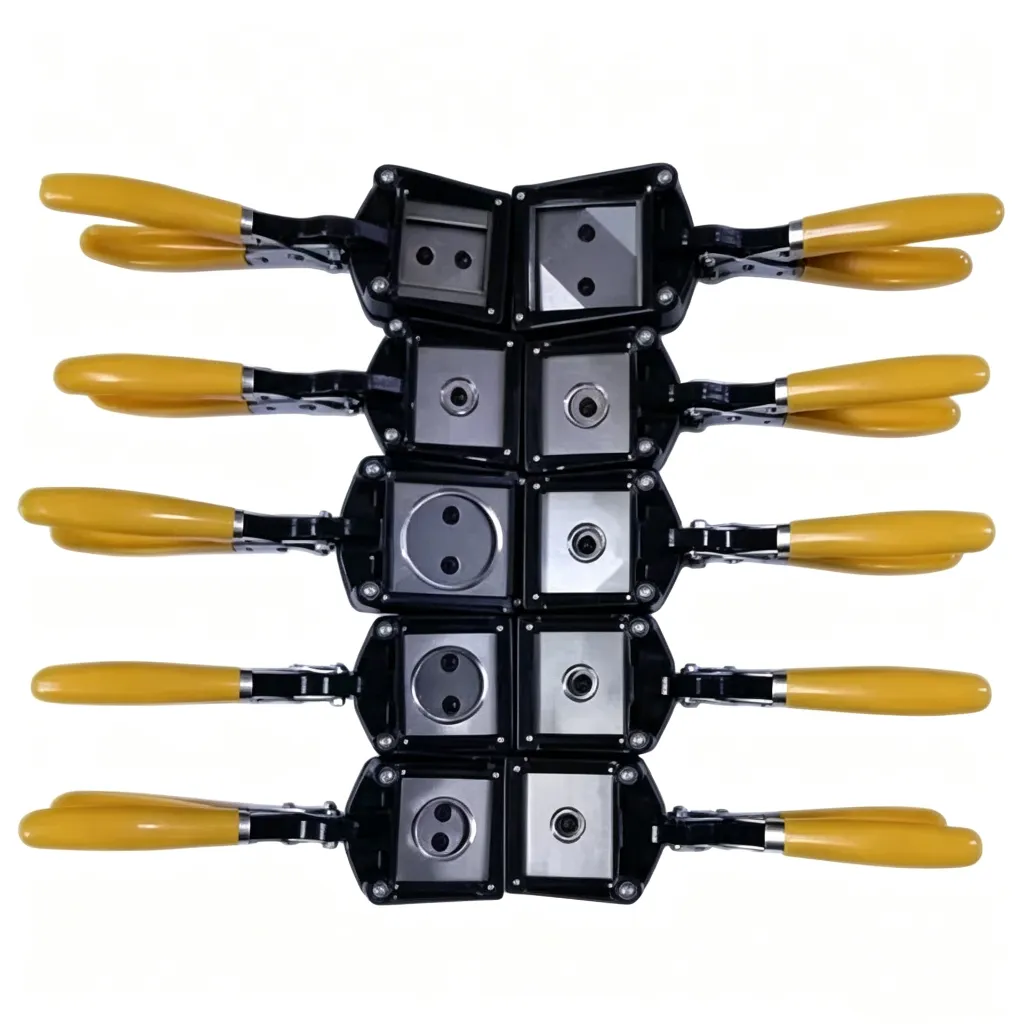

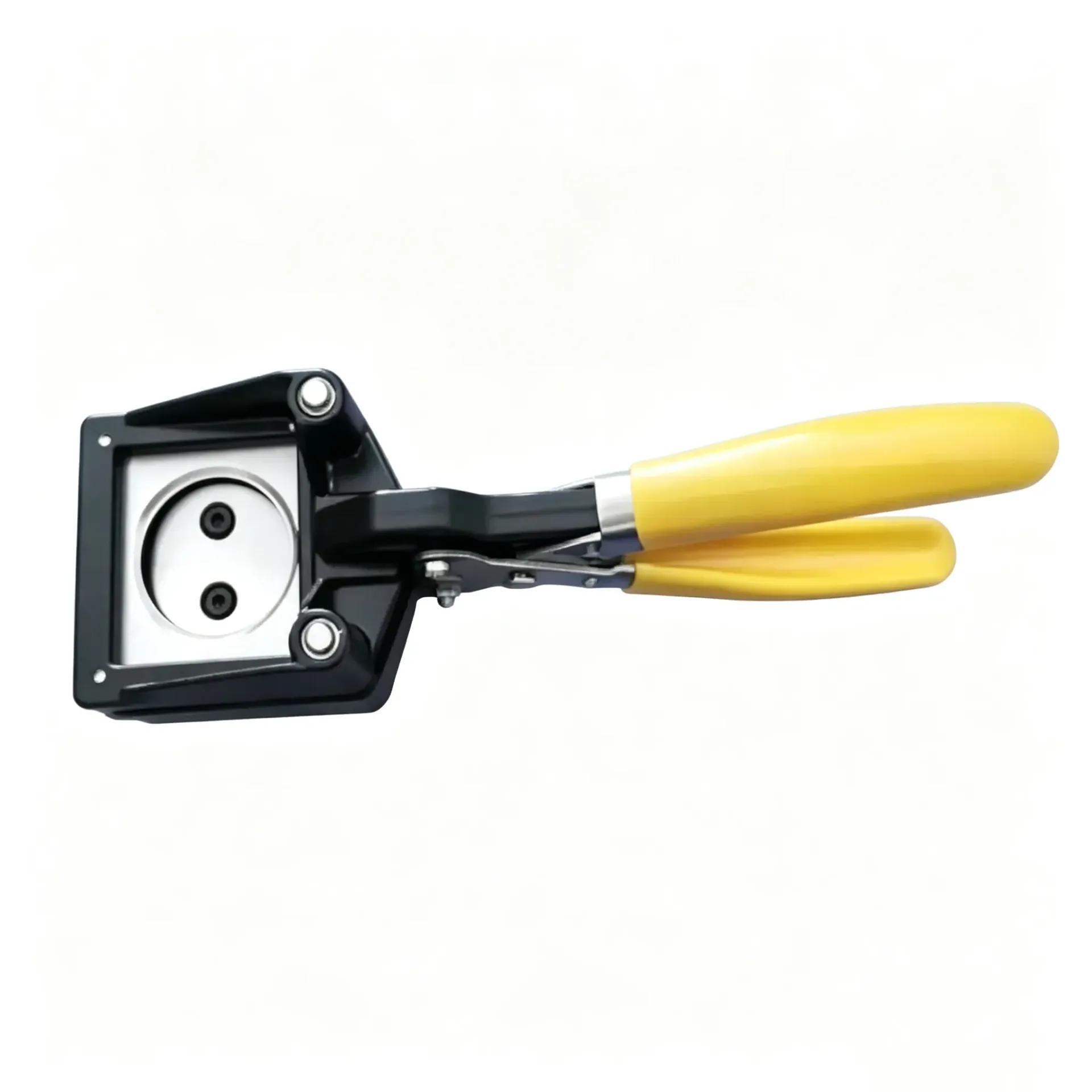

Handheld Disc Cutter for Battery Electrode Sheets and Metal Foils

This handheld disc cutter is designed for preparing circular samples from thin battery electrode sheets and metal foils. It is suitable for manual cutting of copper foil, aluminum foil, and coated electrode sheets, providing convenient sample preparation for battery research and laboratory use.

Key Features

Handheld design for quick and convenient manual sample cutting
Suitable for both bare metal foils and coated battery electrode sheets
Produces clean circular samples with minimal burrs under appropriate cutting conditions

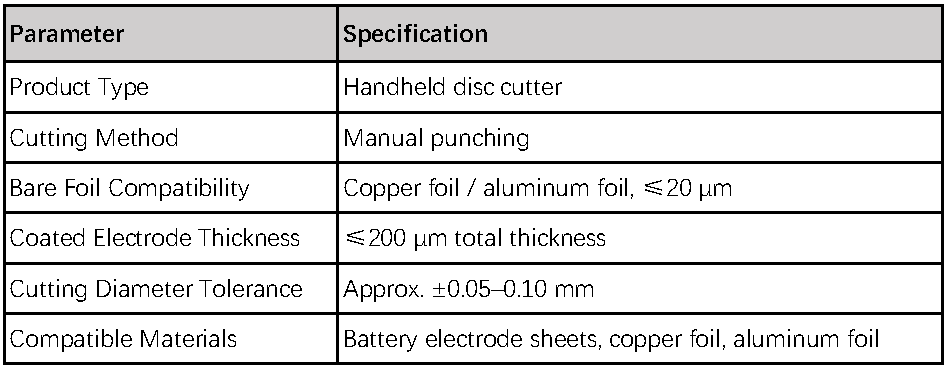

Technical Specifications

*The rated cutting thickness is based on the supplier's general specification. Actual cutting performance may vary depending on material type, hardness, structure, and surface coating.

Applications

Suitable for circular sample preparation of battery electrode materials, including copper-foil-based anodes and aluminum-foil-based cathodes.

Note

Actual cutting quality and burr formation depend on the material, coating, thickness, and cutting condition. Slight burrs may occur and completely burr-free cutting cannot be guaranteed.
