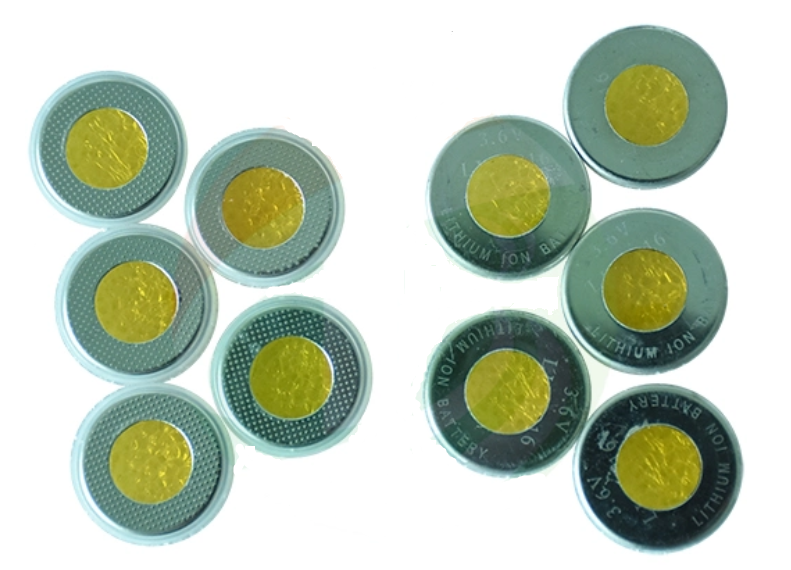

CR2016 Coin Cell Case with Two-Sided Kapton Window for In-situ X-Ray Analysis

CR-2016 coin cell cases with 10mm Kapton windows (5 set/pck). The window is designed for in-situ X-Ray analysis of battery material phase variations during charging and discharging.

Specifications
Dimensions (Dia x Height)	20mm x 1.6mm
Kapton window diameter/ thickness	10mm/0.18mm
Coating	The positive side of the casing is coated with aluminum
Al coating thickness	< 0.01mm
Weight	~7 grams
Application note	In order to reduce X-ray photons loss and get high resolution of X-ray signal for battery, we recommend using carbon-based substrate as current collector instead of Al or Cu foil.

$ 0.00

£ 60.00
