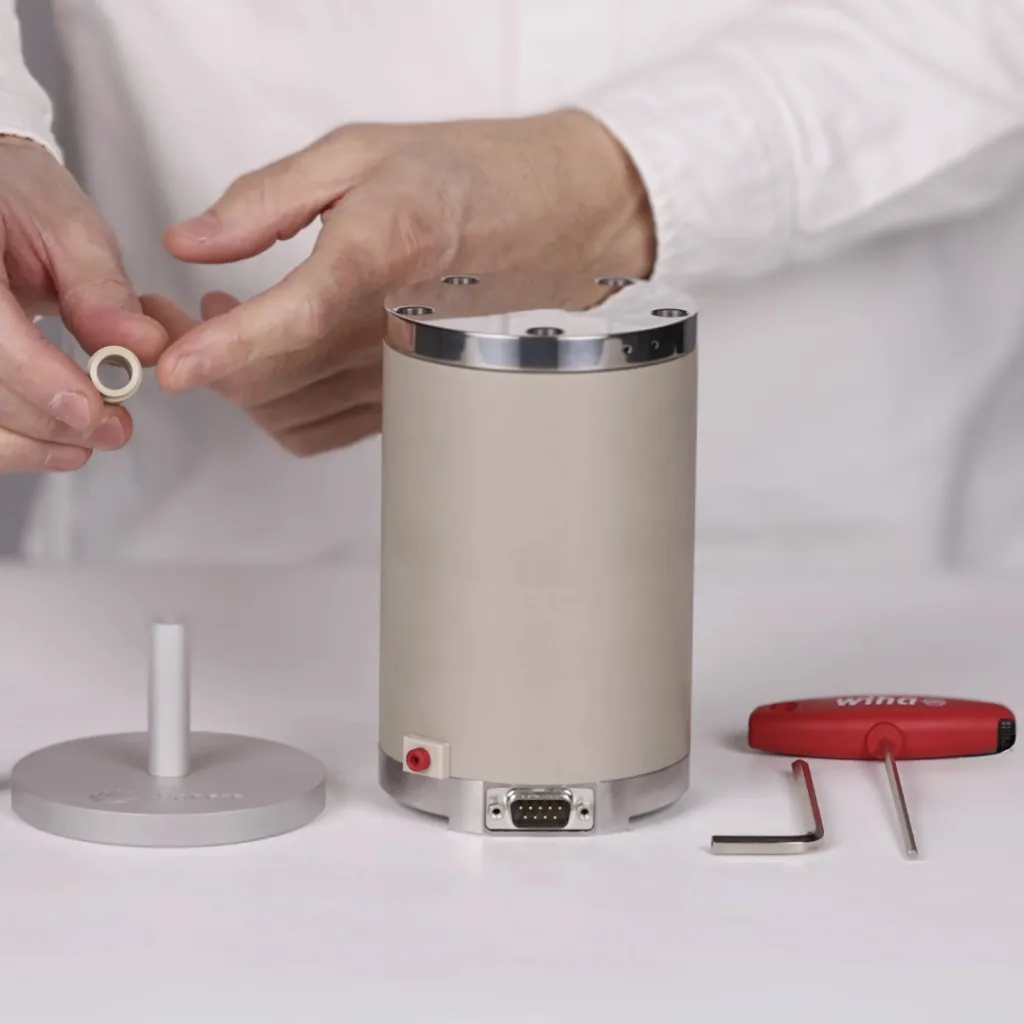

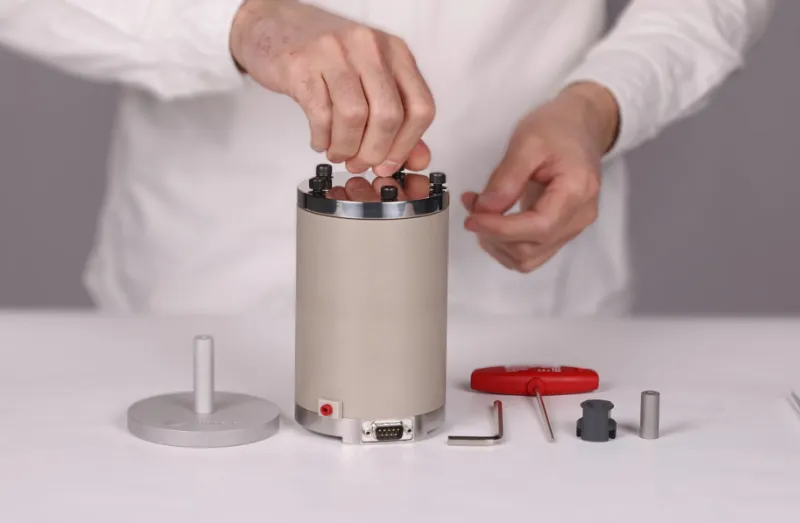

ASC-AD+ is an airtight
electrochemical test cell for low-pressure solid-state battery testing.

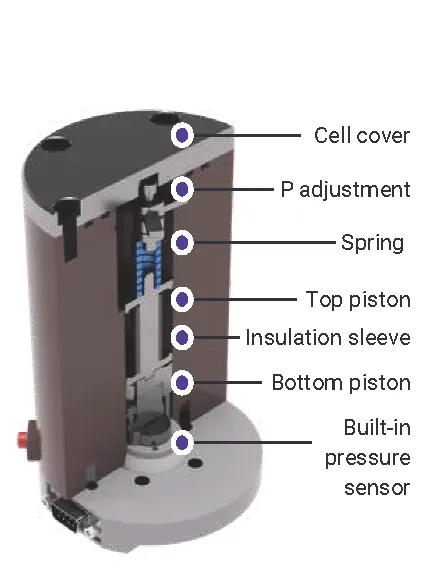

Featuring a built-in pressure sensor, it enables real-time pressure monitoring
during electrochemical experiments while supporting both fixed-thickness and
constant-pressure operation modes.
The system accommodates multiple sample
sizes through interchangeable internal sleeves and can be equipped with an
optional thickness monitoring module for swelling analysis and mechanical
characterization of battery materials.
Key Features
Pressure Monitoring:
Built-in sensor provides real-time pressure data during testing.
Dual Operation Modes:
Supports both fixed-thickness and constant-pressure experiments.
Multiple Sample Sizes:
Compatible with 8, 10, 12 and 14.5 mm sample diameters.
Swelling Analysis:
Optional thickness monitoring for tracking cell expansion.
Airtight Design:
Suitable for controlled solid-state battery testing.

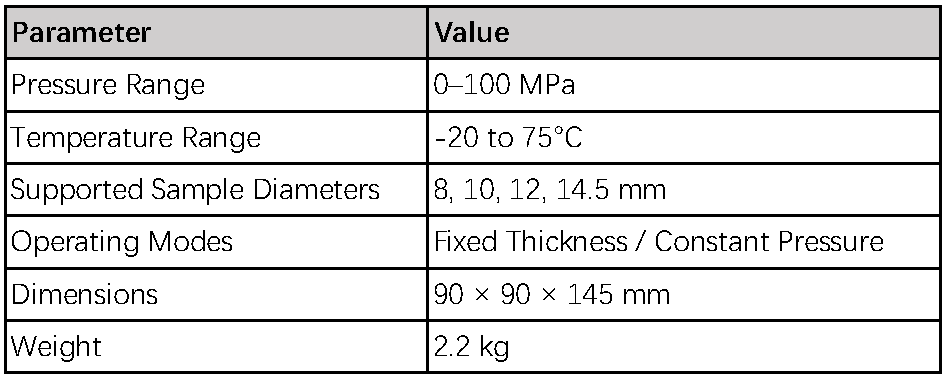

Technical Specifications

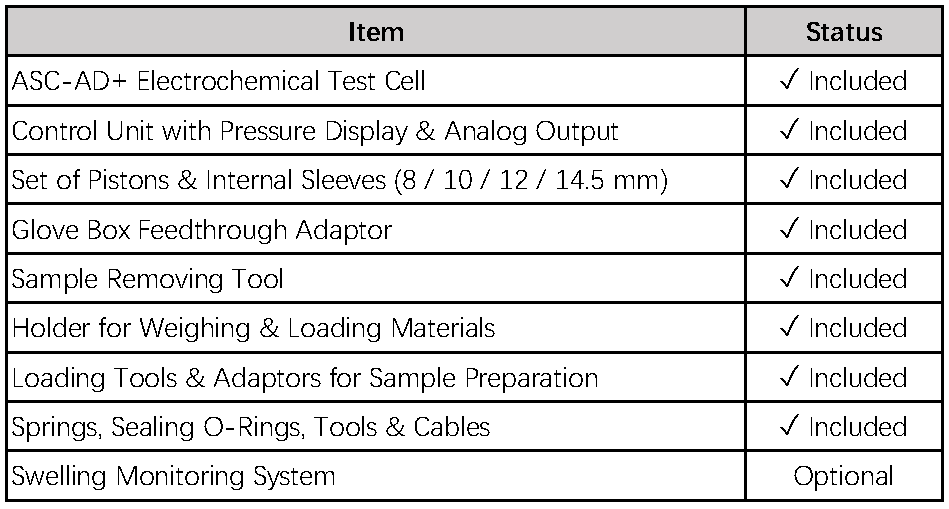

Package Contents & Optional
Accessories

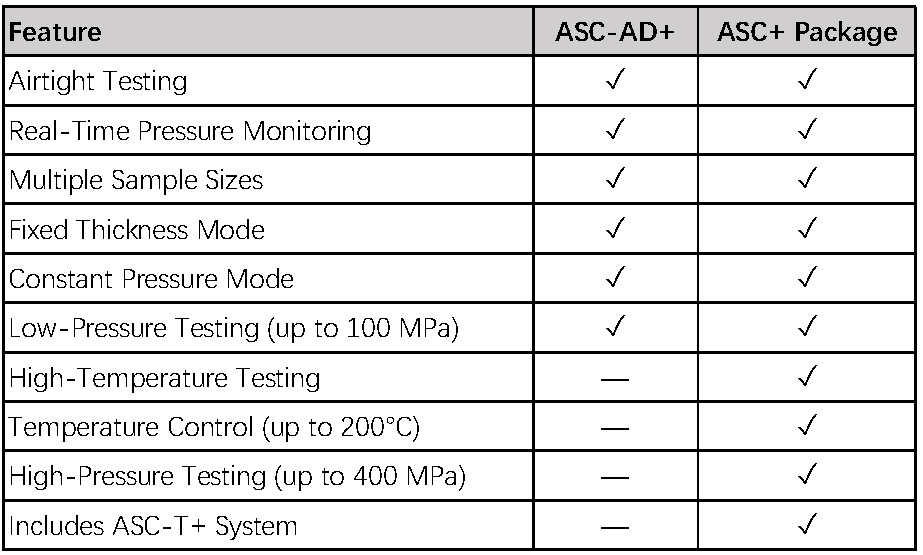

Configuration Comparison
Need temperature-controlled or
high-pressure testing? Choose the ASC+ Package.
Otherwise, the ASC-AD+ provides
all essential capabilities for low-pressure solid-state battery testing.
