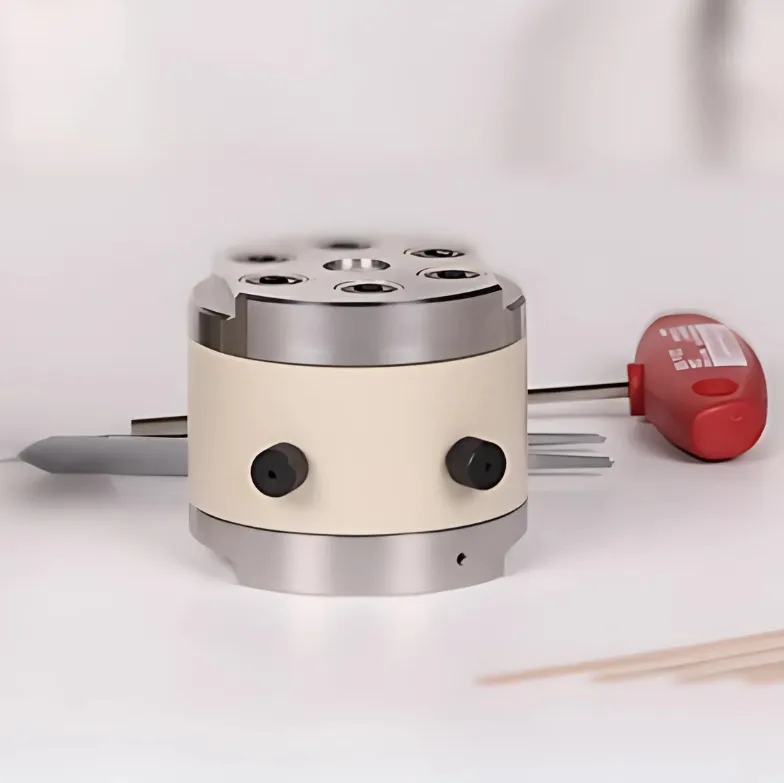

ASC-G is an airtight
electrochemical test cell designed for combined electrochemical testing and
real-time gas analysis. Equipped with four integrated gas flow channels, it
enables monitoring of gases generated during battery operation and
decomposition reactions while maintaining controlled stack pressure up to 400
MPa.
The system includes a calibrated torque wrench and pressure correlation
table for precise pressure adjustment at the sample level.
Key Features
Integrated Gas Analysis Capability: Four gas flow channels enable real-time monitoring and separation of gases generated during electrochemical testing.
Airtight High-Pressure Testing: Supports stack pressures up to 400 MPa in a sealed cell configuration for solid-state battery research.
Precise Pressure Control: Includes a calibrated torque wrench and pressure conversion table for accurate pressure adjustment.

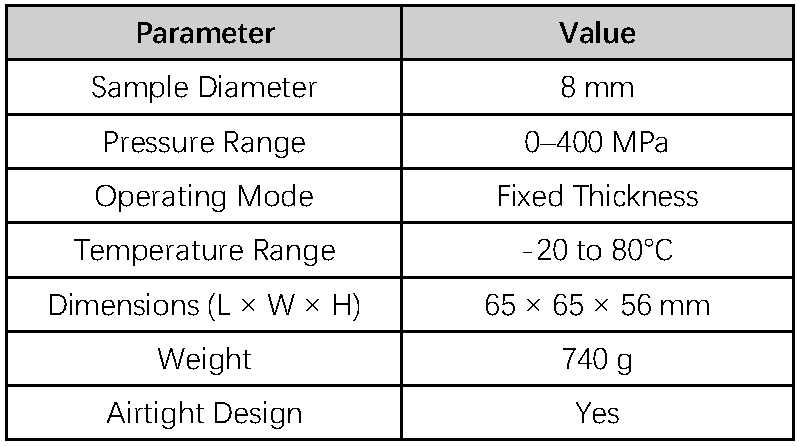

Technical Specifications

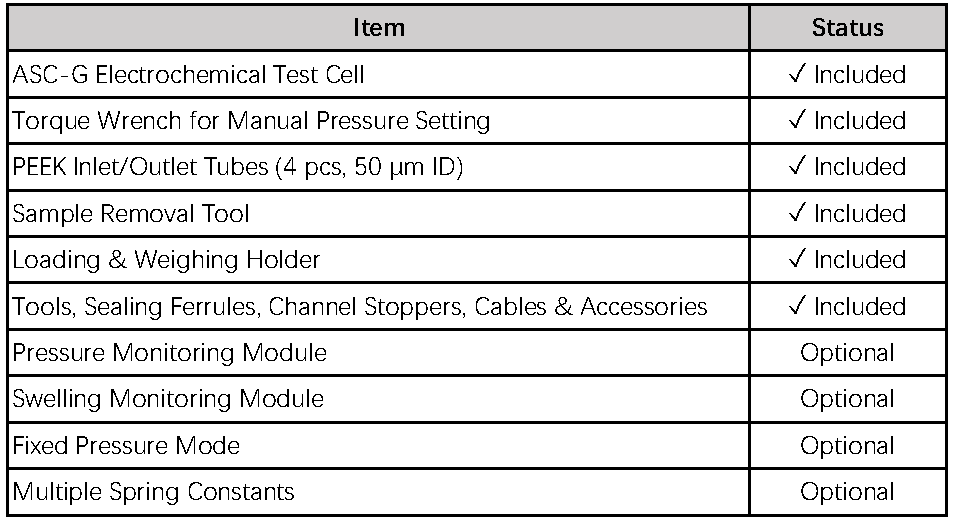

Package Contents & Optional
Accessories
