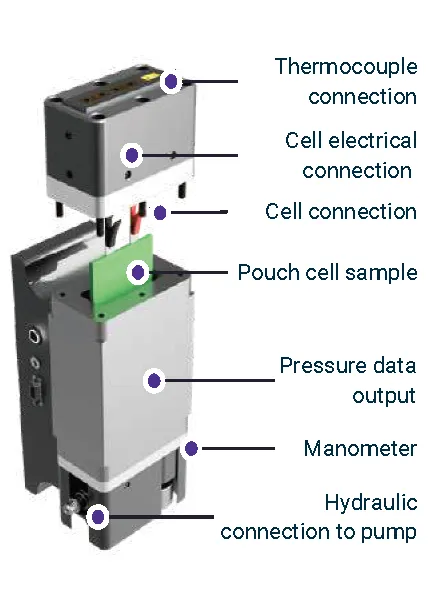

Isostatic Pressure Electrochemical Test Setup for Pouch Cell Research

ASC-IP is an isostatic pressure electrochemical test setup for advanced pouch cell research. It applies uniform hydrostatic pressure from all directions, enabling highly homogeneous pressure distribution and reducing mechanical anisotropy during testing.

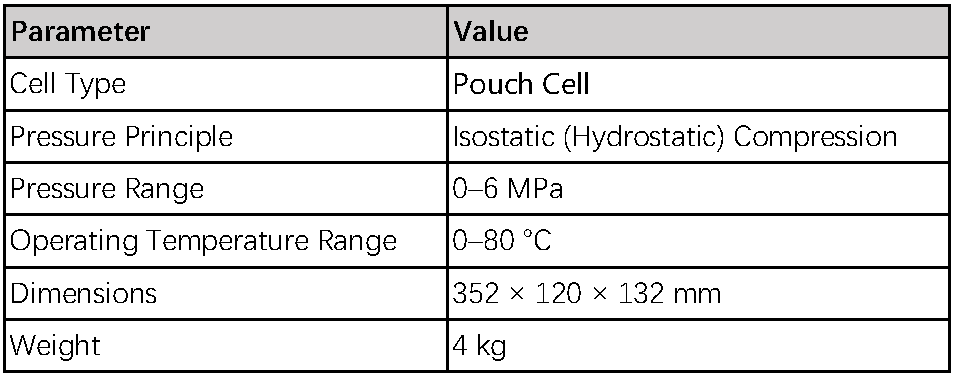

Designed for pressure-sensitive electrochemical studies, the system supports multiple pouch cell sizes and combines pressure monitoring with electrochemical testing for synchronized data acquisition. With a pressure range of up to 6 MPa, the ASC-IP provides a reliable platform for evaluating pouch cell performance under controlled three-dimensional pressure conditions.

Uniform Isostatic Pressure: Applies equal pressure from all directions for highly uniform cell compression.

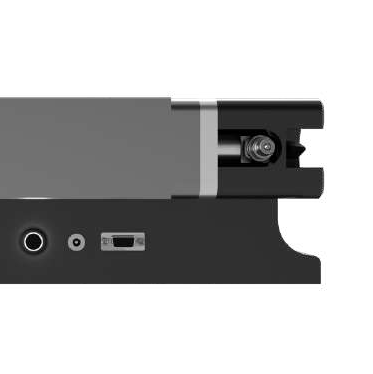

Real-Time Pressure Monitoring: Tracks hydraulic pressure throughout testing and supports synchronized data acquisition.

Flexible Cell Configuration: Supports multiple pouch cell sizes and adjustable tab configurations.

Advanced Pressure-Controlled Testing: Enables electrochemical evaluation under controlled three-dimensional pressure fields.
