ASC-P+ is an advanced
compression test setup dedicated to pouch and prismatic cell testing.
Engineered for precision, this setup is equipped with a built-in pressure
monitoring system that delivers real-time data, giving researchers unparalleled
control over pressure dynamics throughout the testing cycle.
Whether you are
studying cell degradation, mechanical stress, or performance under varied
conditions, the ASC-P+ provides immediate insights to help you fine-tune
experiments, optimize battery performance, and ensure accurate, reproducible
results.
Key Features
Versatile Testing Modes: Adapts
seamlessly to diverse research needs with both Fixed Thickness and Fixed
Pressure (Force) modes.

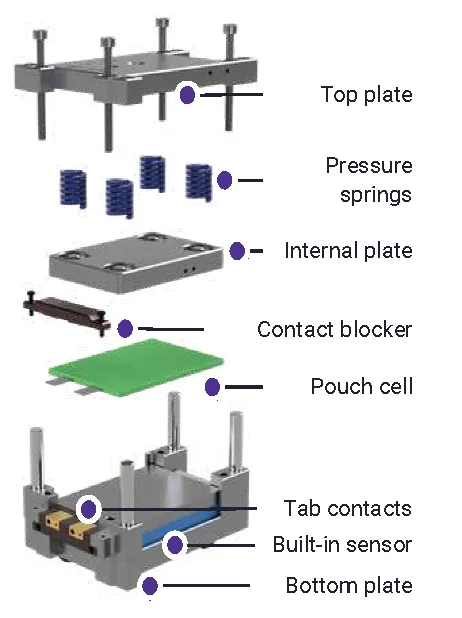

Active Swelling Compensation:
Utilizes multiple adjustable spring options to maintain consistent pressure
during cell swelling and breathing.
Real-Time Data Acquisition:
Built-in pressure sensors provide immediate, analogical data output for
continuous monitoring.
Scalable Architecture:
A compact, user-friendly design that supports cutting-edge add-ons, including
sub-micron swelling monitoring, spatial pressure/temperature mapping, and
advanced heat extraction control.

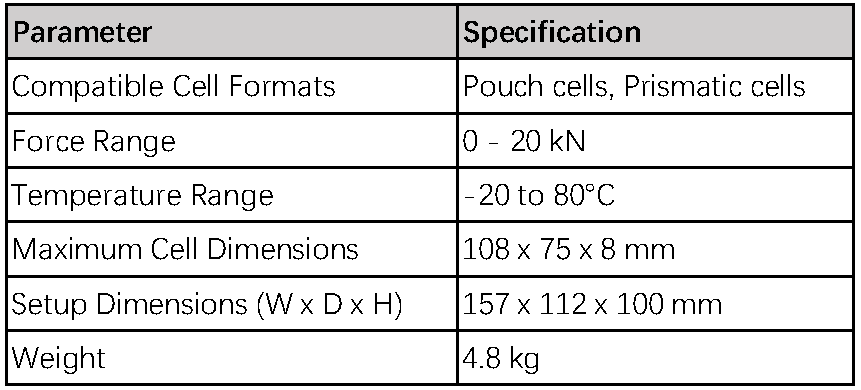

Technical Specifications

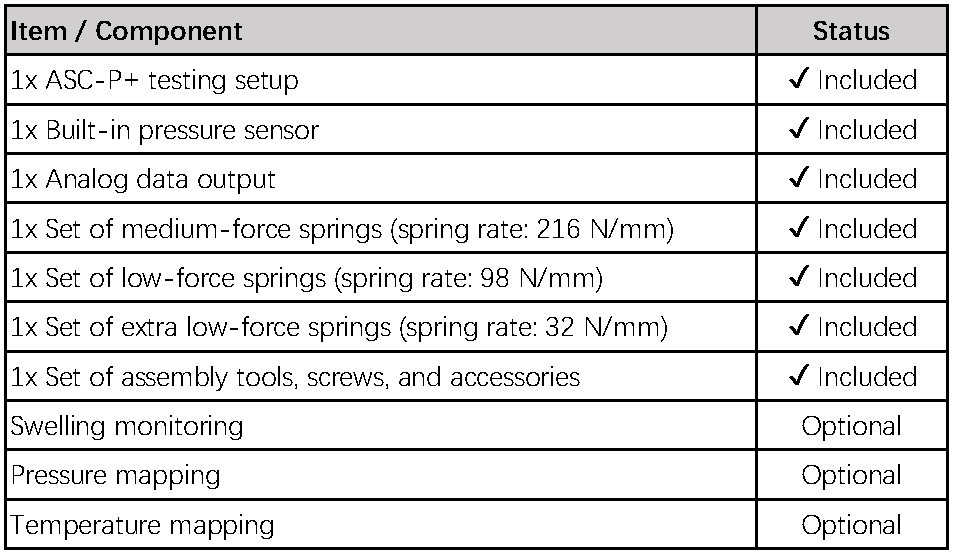

Package Contents & Optional
Accessories
Quick Buyer's Guide:
- Need to track cell thickness
changes? Add the Swelling Monitoring Module to enable in-operando
thickness and electrochemical breathing tracking.
- Need to visualize surface
pressure or grid temperature? Add the Pressure Mapping or Temperature
Mapping options.
Please note: Mapping upgrades
require the companion ASC Control Box for data processing.
