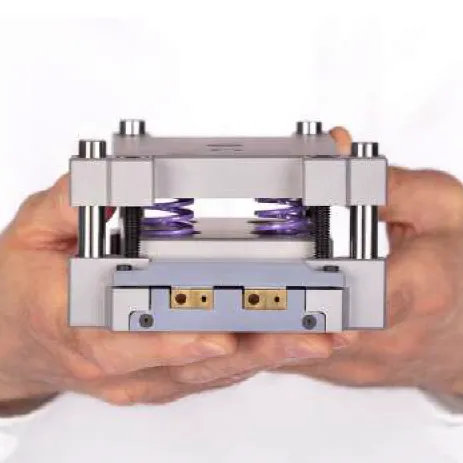

ASC-P is a specialized testing setup for battery
prototyping that enables precise control over the pressure applied to pouch

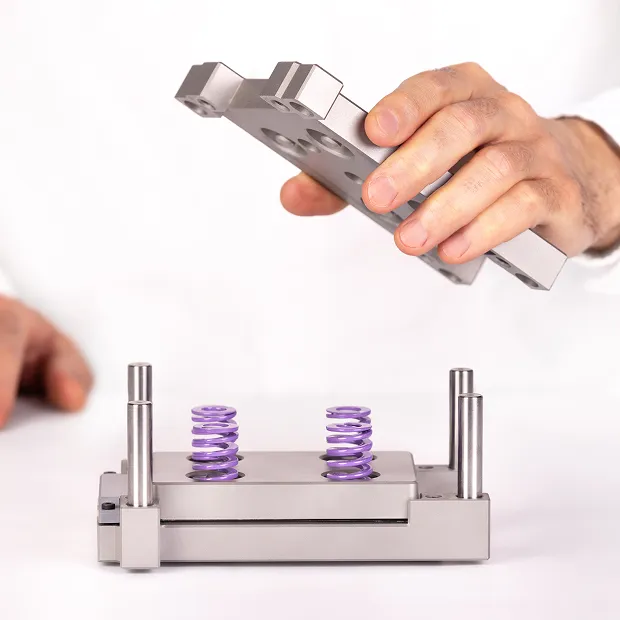

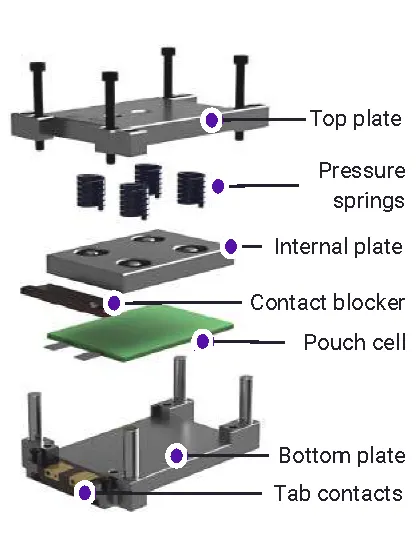

cells. By using adjustable pressure screws and springs, researchers can
fine-tune mechanical stress simulations to accurately test battery durability
and performance.
Additionally, the system features intuitive tab contacts that
simplify electrical connections, ensuring reliable data collection.
Key Features
Dual Operation Modes:
Switch between fixed thickness (for constant dimensions) and fixed pressure
(maintaining consistent force via adjustable springs).
Pressure Control:
Enable precise pressure monitoring via the ASC pressure frame or an optional
built-in sensor.
Swelling Monitoring:
Track cell volume expansion accurately by adding an optional thickness
monitoring system.
Easy Connection:
Simplify electrical setups and ensure reliable data collection using intuitive
tab contacts.

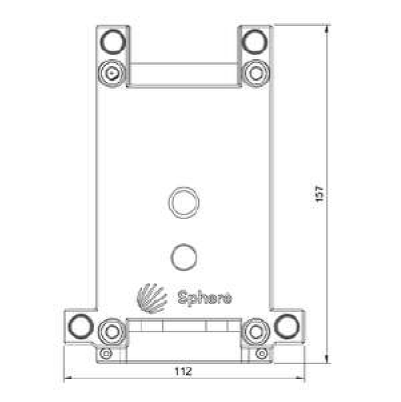

Technical Specifications

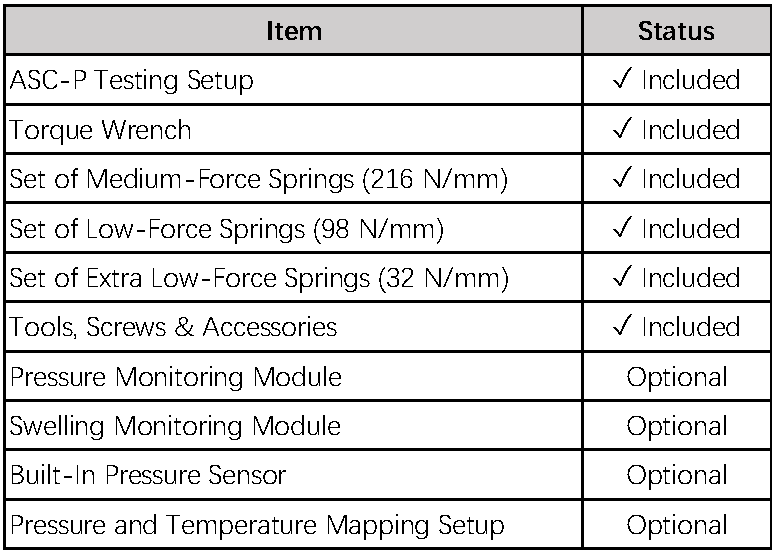

Package Contents & Optional
Accessories
Note: The image illustrates
the optional Pressure and Temperature Mapping Setup. This advanced add-on
utilizes flexible circuits with 56 detection points in direct contact with the
cell body, allowing for precise monitoring of parameter distribution during
tests.

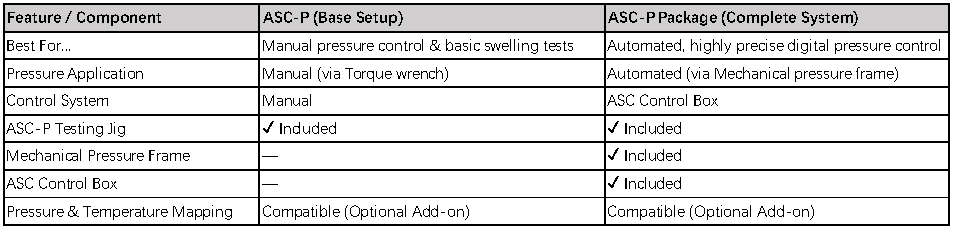

Configuration Comparison
Not sure which one you need?
Compare the base model with our complete automated package below.
