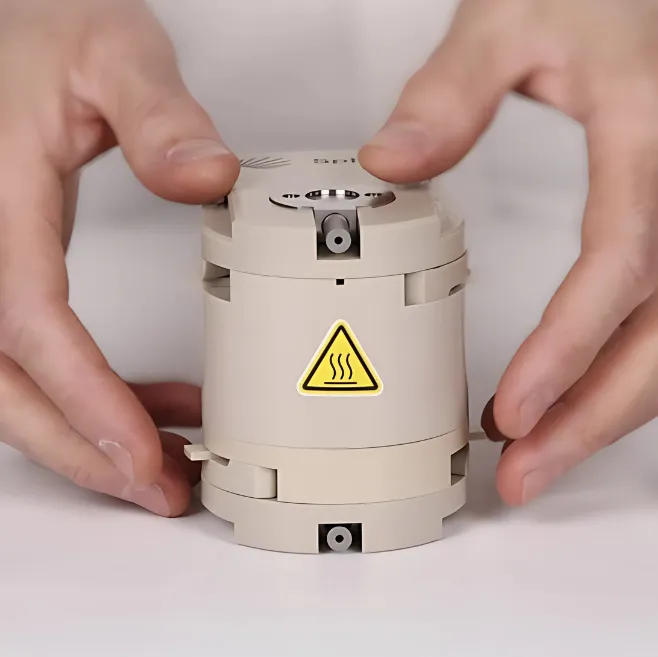

ASC-T+ is an advanced
electrochemical test cell designed for solid-state battery research under
controlled temperature and pressure conditions. Equipped with an integrated
temperature control system and real-time pressure monitoring, it enables
testing from room temperature up to 200°C and pressures up to 400 MPa.
The
system supports multiple sample diameters from 8 mm to 14.5 mm, providing
exceptional flexibility for material evaluation, interface studies, and
advanced solid-state battery development.
Key Features
High-Temperature Testing up to
200°C: Integrated temperature control
system for electrochemical testing under elevated-temperature conditions.

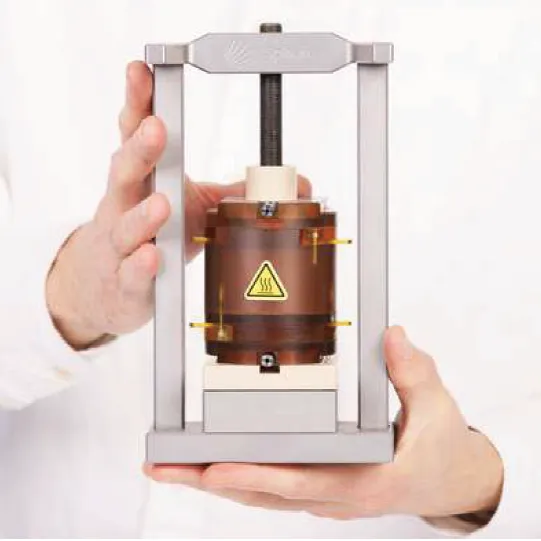

Real-Time Pressure Monitoring up
to 400 MPa: Continuous pressure measurement
during testing using the included pressure frame and control unit.
Flexible Testing Configurations:
Supports multiple sample diameters and both fixed-pressure and fixed-thickness
testing modes.

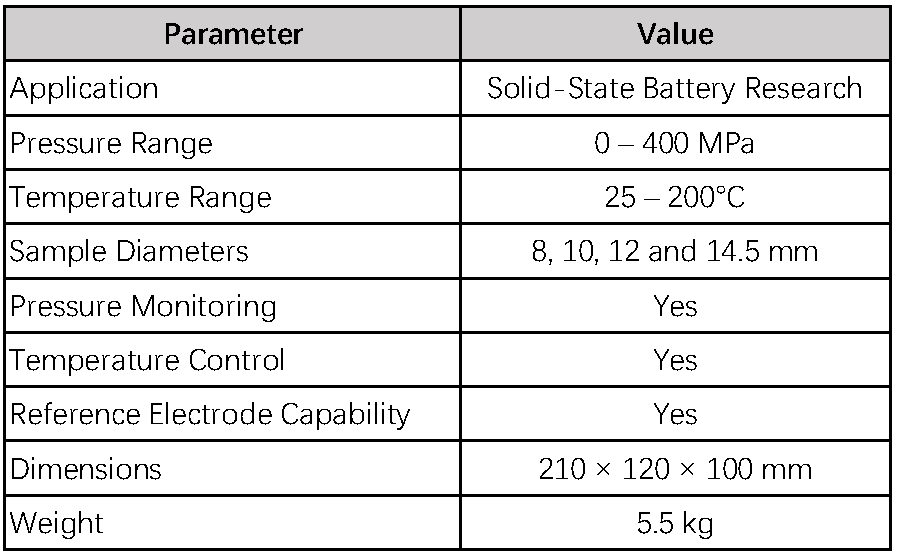

Technical Specifications

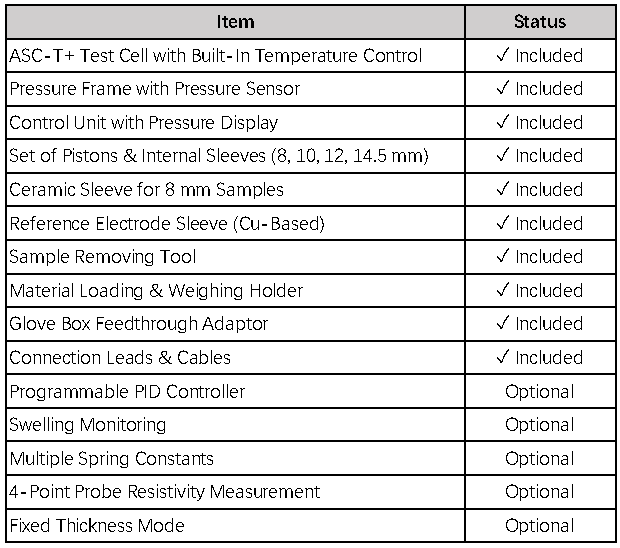

Package Contents & Optional
Accessories
Configuration Comparison
Not sure which configuration is
right for your application?
Contact us.
