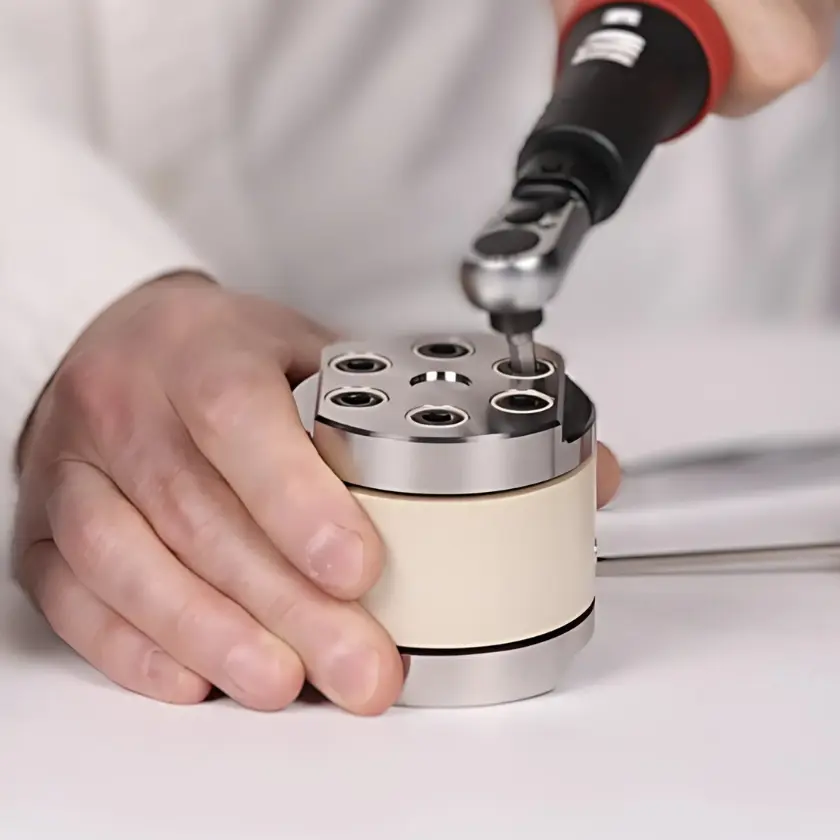

Airtight Electrochemical Test Cell for Solid-State Battery Research
ASC-X is a next-generation airtight electrochemical test cell designed for solid-state battery research. It enables precise pressure control up to 400 MPa in an airtight environment and supports interchangeable sample diameters of 8, 10 and 12 mm.
The redesigned sealing architecture improves pressure reproducibility while simplifying assembly and operation. Suitable for both material-limited studies and advanced electrochemical testing, ASC-X provides a flexible platform for evaluating solid-state battery materials under controlled pressure conditions.
Key Features
Airtight Precision Design: Enables testing of air-sensitive materials in a controlled airtight environment.

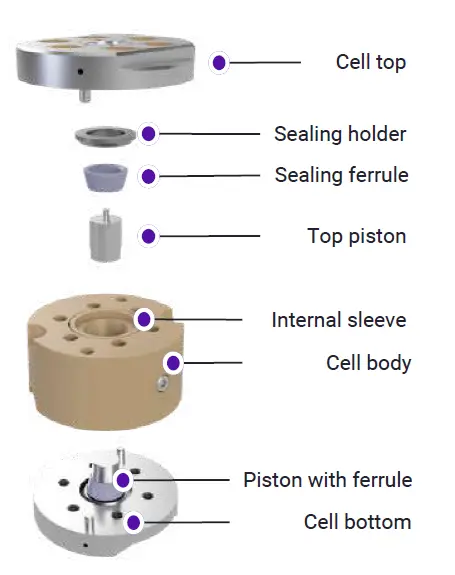

Interchangeable Pistons: Supports multiple sample diameters (8, 10 and 12 mm) with interchangeable pistons and internal sleeves.
Fixed Thickness Mode: Designed for electrochemical testing under controlled sample thickness conditions.
Exchangeable Internal Sleeves: Allows quick adaptation to different sample sizes and research requirements.
Enhanced Reproducibility: Redesigned sealing architecture improves pressure consistency and experimental repeatability.

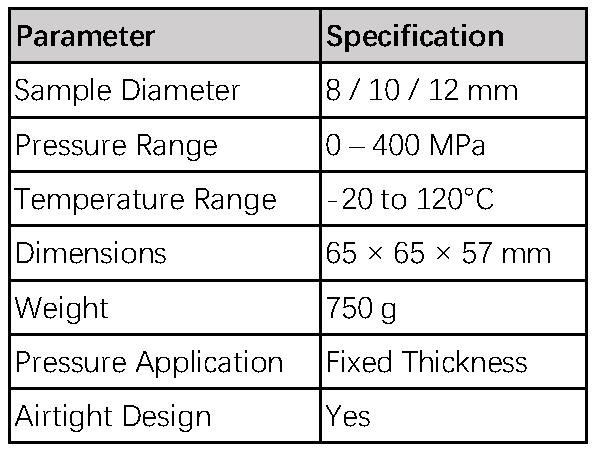

Technical Specifications

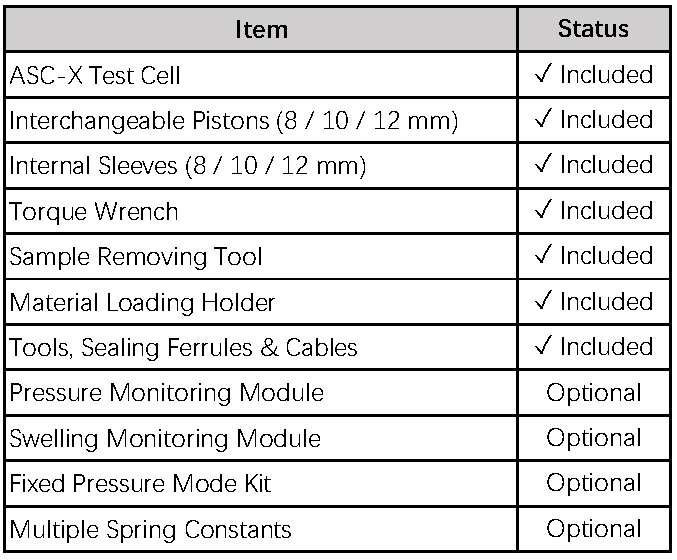

Standard Contents

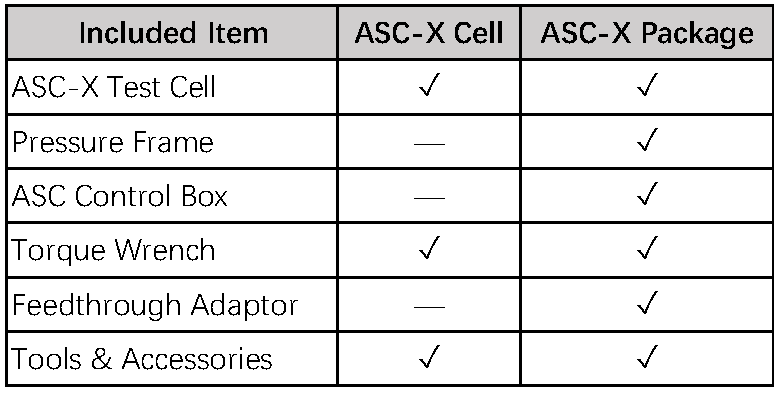

Configuration Comparison
Selection Guide:
Choose ASC-X Cell if you already have a compatible pressure frame and control unit.
Choose ASC-X Package for a complete pressure-controlled testing setup.
