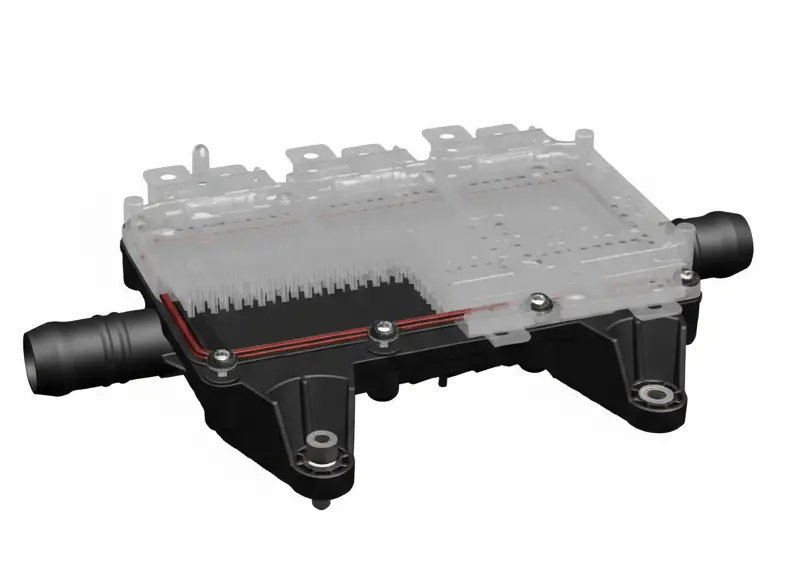

Hybrid Cooling Housing for HybridPACK™ Drive Power Modules

Unlock the full potential of your high-power electronics with our advanced cooling housing, specifically engineered for the Infineon HybridPACK™ Drive family of power modules. Designed for demanding electric vehicle (EV) applications, this cooling solution provides superior thermal management, ensuring optimal performance and reliability for your traction inverters and other high-power systems.

As the electric vehicle market continues to grow, so does the demand for more efficient and reliable power electronics. The heart of any EV is the power inverter, and its performance is directly tied to how well it's cooled. This Erwin Quarder Systemtechnik thermoplastic cooling housing is designed to meet these challenges head-on, providing a robust and cost-effective solution for researchers and engineers working on the cutting edge of EV technology.

•Optimized Thermal Performance: Engineered with a high-strength thermoplastic material and metal inserts, this housing delivers exceptional thermal resistance and optimized coolant flow for superior heat dissipation. It is designed to maintain the performance of power modules ranging from 100 kW to 300 kW.

•Robust and Reliable: Validated against the rigorous AQG324 automotive qualification standards, this cooling housing is built to withstand the demanding conditions of automotive environments. It features a pressure shock resistance of up to 4 bar, ensuring long-term reliability.

•Designed for Automation: The integrated profile sealing with fixing knobs simplifies the assembly process, making it ideal for automated manufacturing lines. This feature minimizes the risk of seal displacement and ensures a perfect fit every time.

•Flexible and Adaptable: The housing comes standard with a Hasco Z83 19x19 connector, but can be customized with other connectors such as SAE J2044, NT413, or Rayconnect to meet your specific requirements. This flexibility makes it a versatile solution for a wide range of applications.

•Water-Glycol Optimized: The cooler housing and gasket are specifically designed for use with water-glycol liquid, the industry standard for EV cooling systems. This ensures compatibility and optimal performance within your existing thermal management system.

This cooling housing is the ideal solution for a wide range of applications in the field of electric mobility and power electronics research, including:

•Electric Vehicle (EV) Traction Inverters: Ensure the reliability and performance of your EV powertrain with a cooling solution designed for high-power applications.

•Hybrid Electric Vehicle (HEV) Power Electronics: Manage the thermal challenges of hybrid power systems with a compact and efficient cooling housing.

•Battery Research and Development: Create a stable and controlled thermal environment for your battery research projects, enabling accurate and repeatable results.

•Power Electronics Testing and Validation: Build robust and reliable test benches for power electronics with a cooling solution that meets automotive standards.
