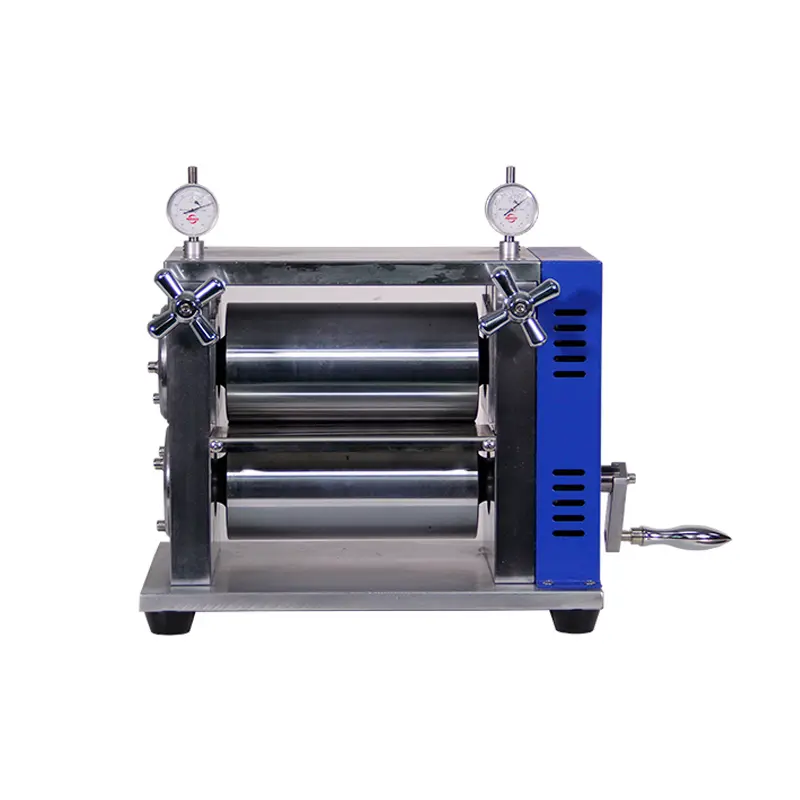

Manual Roller Press Machine
Manual Rolling Press Machine For Lithium Battery Electrode Calendering

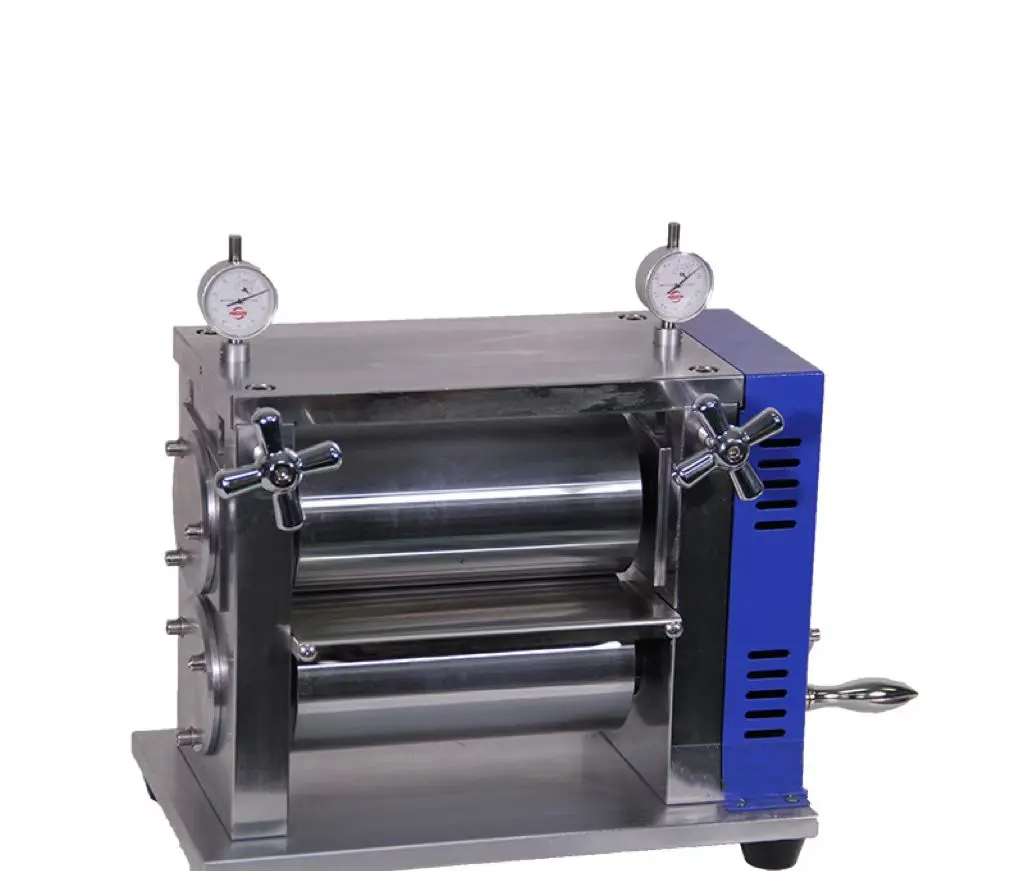

SG100L is a Manual Rolling Press tool featuring dual rollers with 96 mm dia. x 100mm width, along with a dual-grade micrometer. This rolling press is perfectly suited for fine-tuning the thickness and enhancing the active material density of electrodes in Li-Ion battery research following the coating and drying processes.
This device is primarily utilised in laboratories for processing lithium battery materials, as well as small amounts of precious metals like gold and silver, and non-ferrous metals such as copper and aluminium, which are manually compressed.
Specifications
Structure | 1.Roller size: Φ96mm Dia. x 100mm width Rollers made from durable steel (HRC > 60) with Chromium electroplated layer 2. Dual micrometer designed for precise thickness calibration from 0 to 2mm maximum |
Rolling Press Accuracy | ≤±0.005 |
Rolling Press Thickness | 0-2mm adjusted with Dial gauge |
Rolling Press Width | 100mm (150mm, 200mm, 300mm, 400mm Optional) |
Product Dimensions | 350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14") |
Application Notes | 1. To prevent rust, it is essential to clean and dry the rollers' surfaces with acetone after every use. 2. Please apply rust-resistant oil to the machine if it will be left unused for a long time. |
