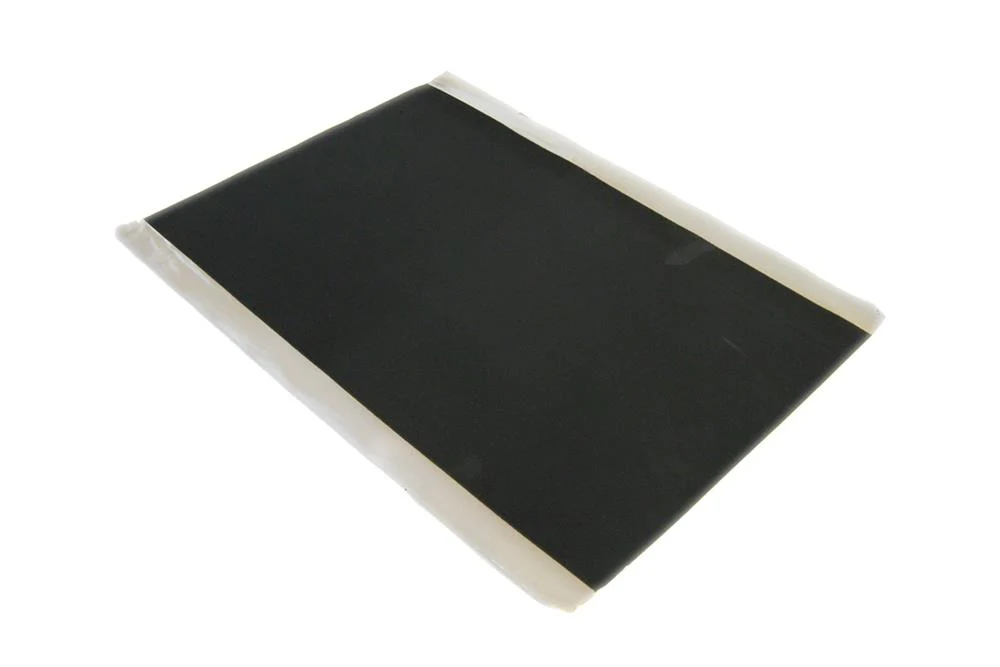

Aluminum Foil Single Side Coated by LiNiCoMnO2 (NCM111)
241mm L x 200mm W x 0.06mm T, 5 sheets/bag
This premium single-sided electrode sheet consists of a high-quality aluminum foil substrate uniformly coated with Lithium Nickel Manganese Cobalt Oxide (NCM111). Designed specifically for lithium-ion battery research and cell manufacturing, it serves as a highly efficient positive electrode (cathode).
Featuring precise compaction density and an optimized active material formulation, this cathode sheet ensures excellent electrochemical performance, high specific capacity, and batch-to-batch consistency for reliable cell assembly.
Technical Specifications

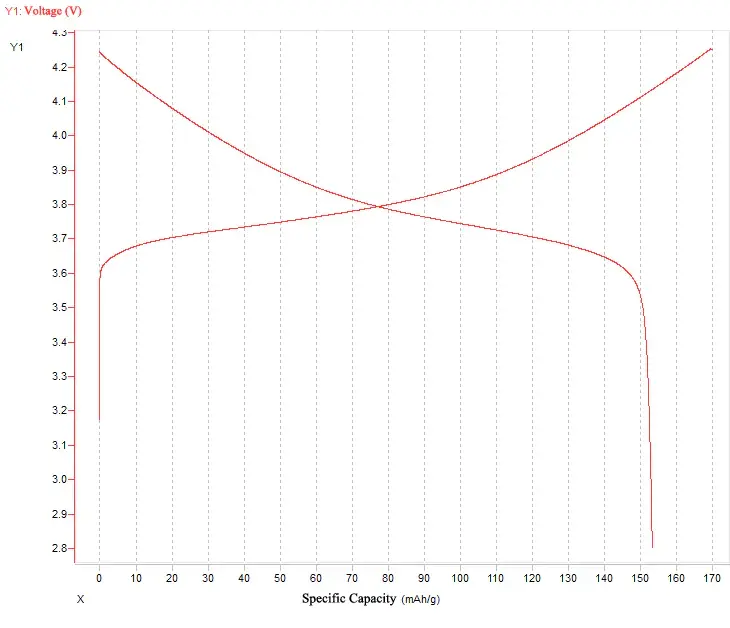

Test conditions: 0.1C, 4.25–2.8 V vs Li/Li⁺, Half Cell.
Electrolyte: 1.0M LiPF6 in EC:DMC:EMC=1:1:1 Vol% with 1.0% VC
Electrolyte: 1.0M LiPF6 in EC:DMC:EMC=1:1:1 Vol% with 1.0% VC
Storage & Handling
- Handling: Always handle the electrode sheets with powder-free cleanroom gloves to prevent contamination. Avoid bending, scratching, or creasing the coated area.
- Storage: To prevent moisture absorption and material degradation, the sheets must be stored in a vacuum desiccator, a vacuum drying oven, or an inert gas glove box immediately after opening.
