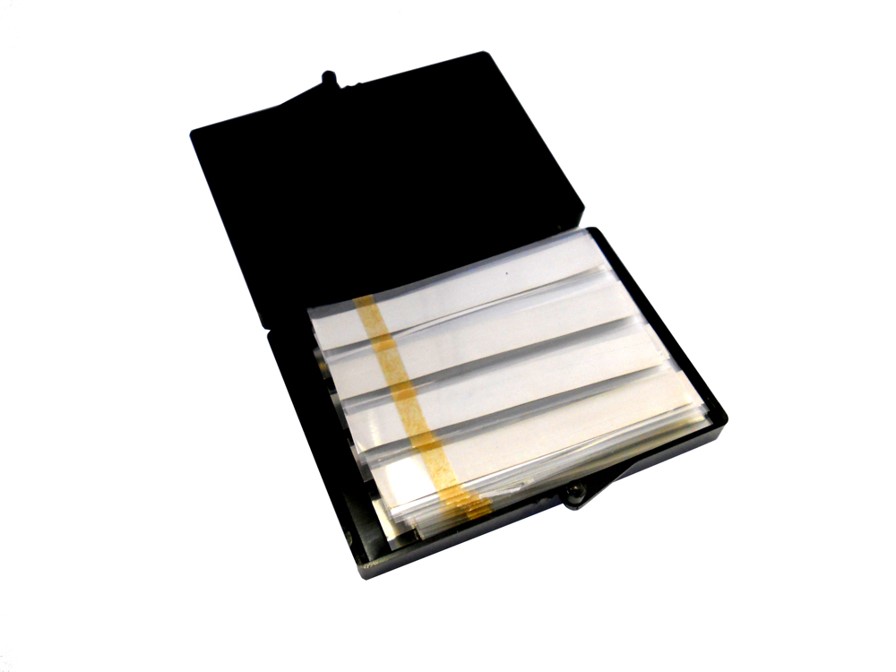

Nickel plated Copper Tabs with adhesive strip for Pouch cells - Standard sizes

Nickel plated Copper Tabs with adhesive strip for Pouch cells - Standard sizes

Nickel Plated Copper Tabs


Anode tabs made of Nickel plated Copper. Typically, anode tabs are made of either Nickel or Nickel plated copper. Thin 0.1mm tabs would be made of Nickel only and thicker ones, as on this item, from 0.2mm onwards are usually made of Nickel plated copper.
This product is for standard tab sizes available usually in stock and small quantities. We also regularly make custom tabs to spec. Please see here if you need custom tabs.

SPECIFICATION:
  • Item: Nickel battery welding tabs
  • Adhesive melting point : outer edge about 155C and middle 245C
  • Adhesive used: DNP
  • Storage: Can be stored for 12 months at room temperature and humidity <70%
ITEM
Specifications
Package Size
CU/N-T-02-08-60
8mm W * 60mm L * 0.2mm T / Matsumara Black Adhesive
50 pcs/box
CU/N-T-02-15-43
15mm W * 43mm L * 0.2mm T / DNP Yellow Adhesive
50 pcs/box
CU/N-T-02-20-32
20mm W * 32mm L *0.2mm T / White Adhesive
10 pcs/box

$ 0.00 $ 0.00
£ 0.00

  • Metal-thickness (T)
  • Tab-width (W)
Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Metal-thickness (T): 200um
