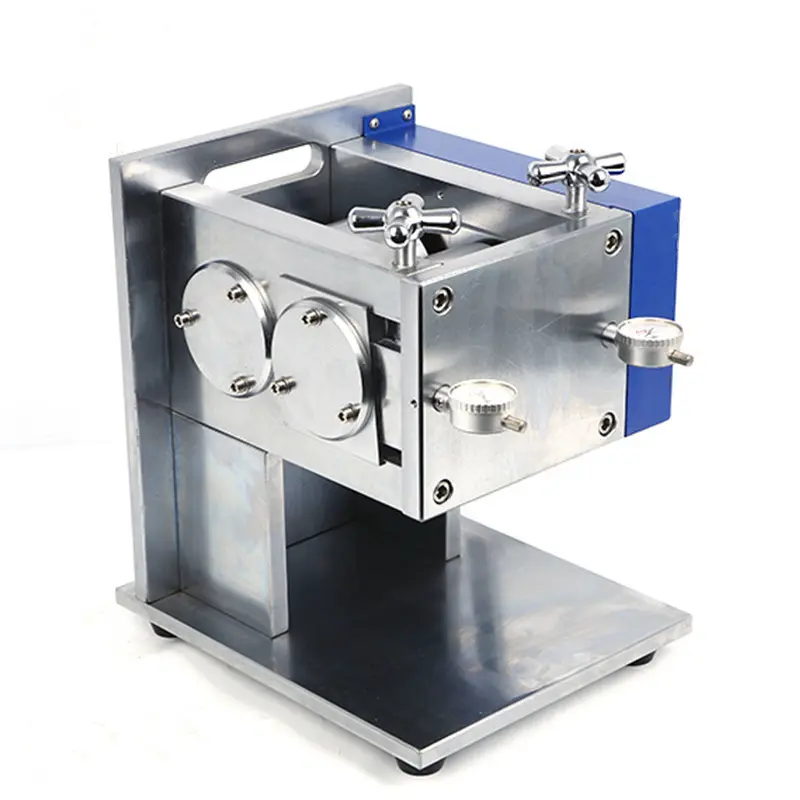

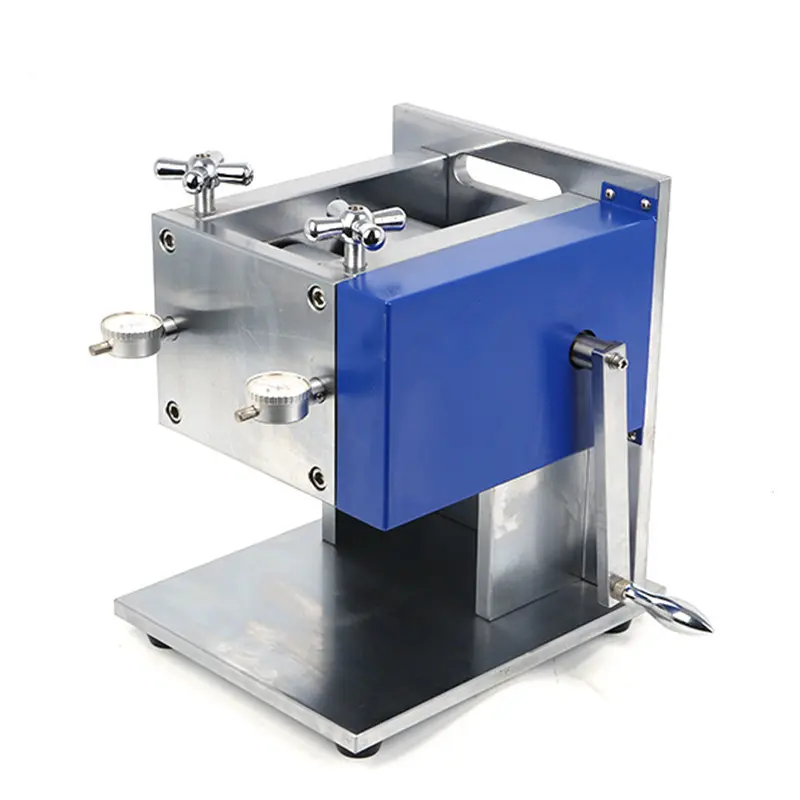

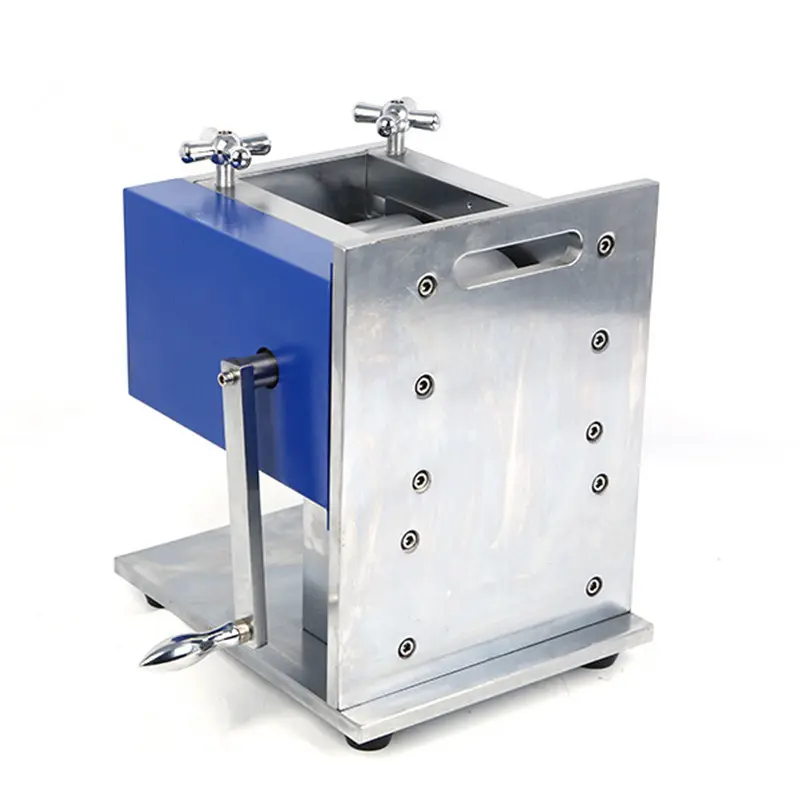

Manual Horizontal Roller Press Machine
100mm roller width
SG100W is a manual rolling press designed for research on battery electrode rolling after the coating and drying processes. This bench-top machine features a 100mm wide roller.
Specifications
Roller Diameter | 2-Φ96mm |
Roller Cylindricity | ≤±2um |
Roller Hardness | HRC62 |
Rolling Thickness | 0-2mm adjustable |
Rolling Width | 100mm (can be customised) |
Operation Mode | Manual |
Dimension | L400mm * W300mm * H330mm |
Weight | 50KG |
Features | 1. The rolling pressing speed is adjustable. 2. Roller hardness＞HRC62. 3. Moving forward and backward are available. |
