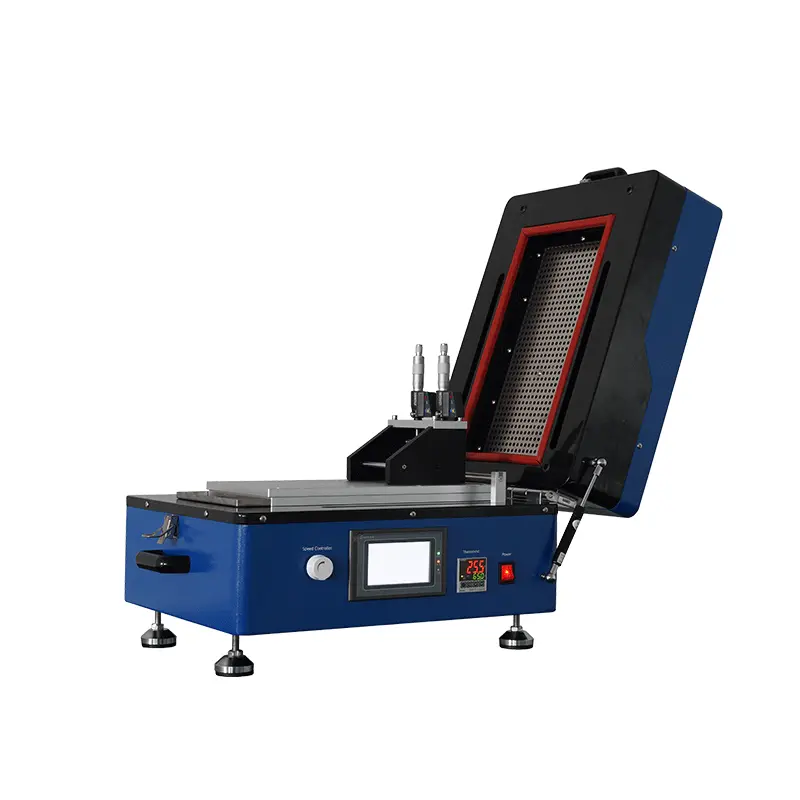

Automatic Film Coating Machine With Dryer
TMH250 includes vacuum
Designed for multiple material coating applications, the TMH250 is especially effective for coating lithium battery electrodes in coin cell assembly and pouch cell research. It includes a vacuum pump and a heating system, providing precise temperature control up to 150℃.
With adjustable film speed, It is equipped with a built-in vacuum pump or can be linked to an external vacuum source to hold the substrate sheet in place.
Source Voltage | AC110V-240V, 50/60HZ |
Power | 1.2KW |
Coating Speed | 0-120mm/s, Step-less transmission Accuracy: 10mm/sec |
Effective Coating Area | 100mm W * 250mm L |
Key Features | Supplied with dryer and, vacuum pump |
Stroke Length | 10-250 mm adjustable by Adjustable Position Switch |
Platform | Aluminium alloy flat vacuum chuck Vacuum Chuck Dimension: 365mm(L) * 200mm(W)*30mm(T) |
Coating Width | 100mm (Can be customized) |
Coating thickness | 0.01~6mm adjustable |
Heating Dry System | RT-150°C, Digital temperature controller |
Temperature Control Accuracy | ±1°C |
Dimension | 600*450*360mm |
Weight | About 50kg |
Additional Feature | 1. Built-in vacuum pump 2. Heating system : Installed on the upper cover 3. Built-in digital temperature controller with accuracy of +/-1°C. 4. Max. Heating Rate:10°C/min Max. Heating Temp.: 150°C 5. A 100 mm wide micron-adjustable film applicator. Accuracy: ±1μm with Digital Dial Meter |
