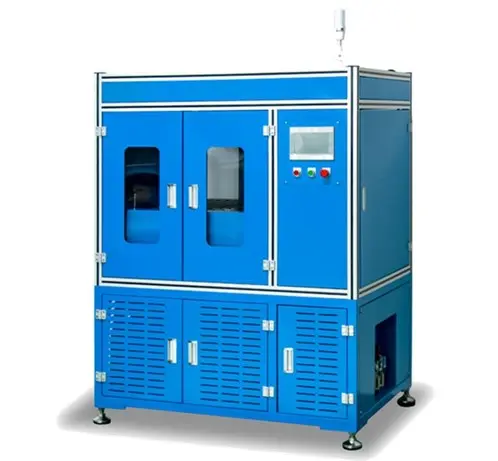

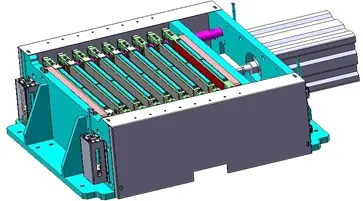

Horizontal Hot Press Forming Machine
This equipment is a 16-channel hot pressing forming machine for same-side tab batteries. It adopts a horizontal structure with one pressurised unit and eight laminated plates. Each layer processes two batteries, allowing a total capacity of 16 channels.
The machine is mainly used for hot pressing and forming flexible packaging lithium-ion batteries. It replaces traditional baking and shaping processes, helping reduce formation time, shorten production cycles, and lower labour costs.
After vacuum extraction and sealing, batteries achieve a smoother and more uniform surface appearance. The system combines forming and hot pressing in one process, and includes heating, temperature control, charging, data communication, safety protection, and smoke alarm functions.
Work process description
Temperature
control start → Cabinet door opens → Clamp opens → Battery is manually loaded →
Clamp closes → Cabinet door closes → Process starts → Process completes and
clamp opens automatically → Cabinet door opens → Battery is manually removed.
Battery incoming dimensions (mm):
- Length (A): 40–180
- Width (B): 40–180
- Thickness: 1–16
Charging and discharging time setting
- Setting range: 0 to 99 hours 59 minutes
- Resolution: 1 minute
- Data recording interval: 1 second to 60 minutes
- Channel sampling interval: 5–20 seconds (adjustable)
Charging mode:
- Constant current (CC): end condition based on voltage or time
- Constant current–constant voltage (CCCV): end condition based on time or current
Discharge mode:
- Constant current discharge (CC): end condition based on voltage or time
Hot pressing temperature
- Temperature range: Ambient +10°C to 90°C
- Control accuracy: ±4°C (within the same fixture layer)
- Heating time: approximately 20 minutes (target temperature: 80°C)
Pressure system
- Pressure range: 500–1400 kg
- Control accuracy: ±20 kg
- Resolution: ±1 kg
