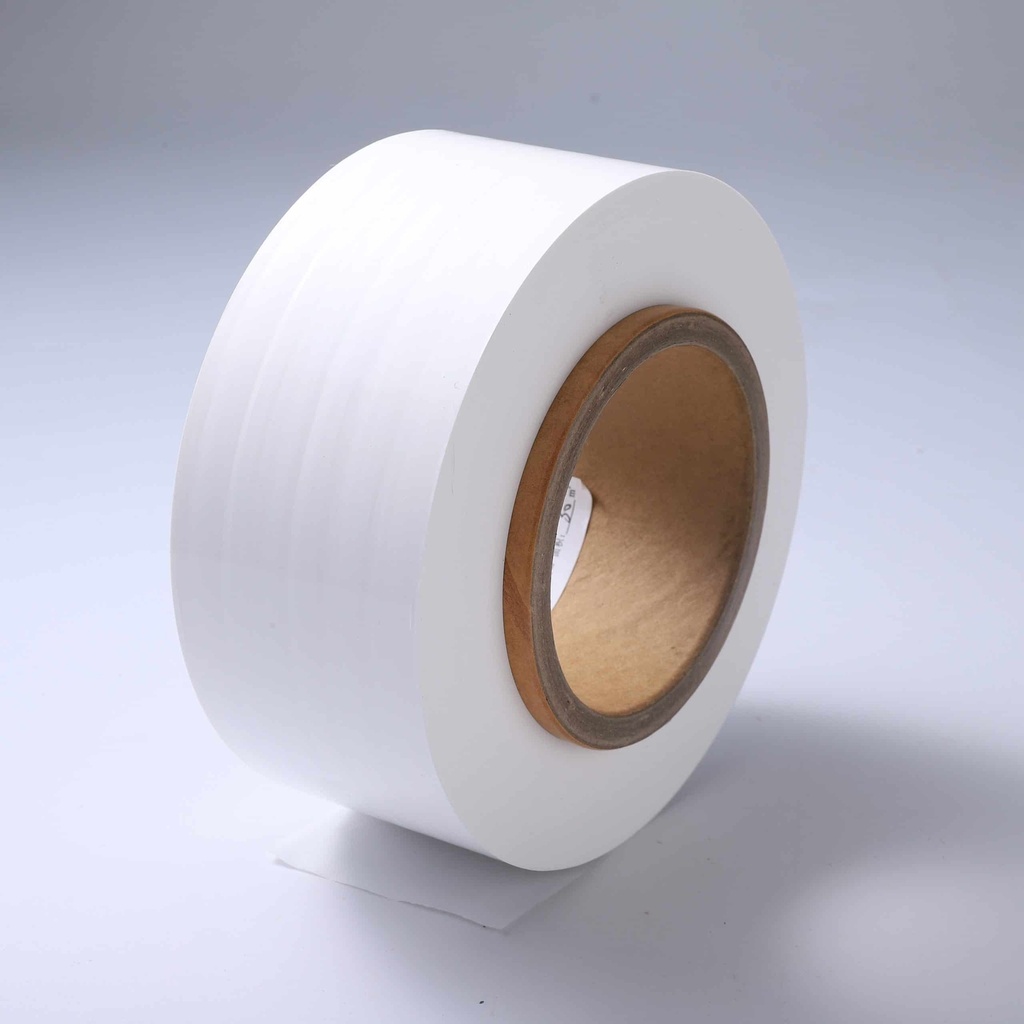

Celgard 2325 - 25um Trilayer PP/PE/PP Separator Roll
Standard roll; 85mmx 60m
Celgard 2325 - 25um Trilayer PP/PE/PP Separator Roll
Celgard PE Ion Exchange Membrane for lithium battery Separator with 25-micron thickness, This separator is a PP/PE/PP three layers (polypropylene-polyethylene-polypropylene) membrane. It is made by Celgard.
It can be used as a li-ion battery separator in battery R&D.
Celgard PE Ion Exchange Membrane for lithium battery Separator with 25-micron thickness, This separator is a PP/PE/PP three layers (polypropylene-polyethylene-polypropylene) membrane. It is made by Celgard.
It can be used as a li-ion battery separator in battery R&D.
| Name | Celgard 2325 Battery Separator |
| Type | PP/PE/PP three layers |
| Thickness | 25μm |
| Width | 85mm |
| Length | 60m |
| Net weight | 1.12 lb |
| Gurley JIS | 620 seconds |
| TD Shrinkage @ 90°C / 1 hour | 0% |
| MD Shrinkage @ 90°C / 1 hour | 5% |
| Porosity | 39% |
| Puncture Strength | 360 grams |
| Tensile Strength, MD | 2050 Kg/cm^2 |
| Tensile Strength, TD | 165 Kg/cm^2 |
