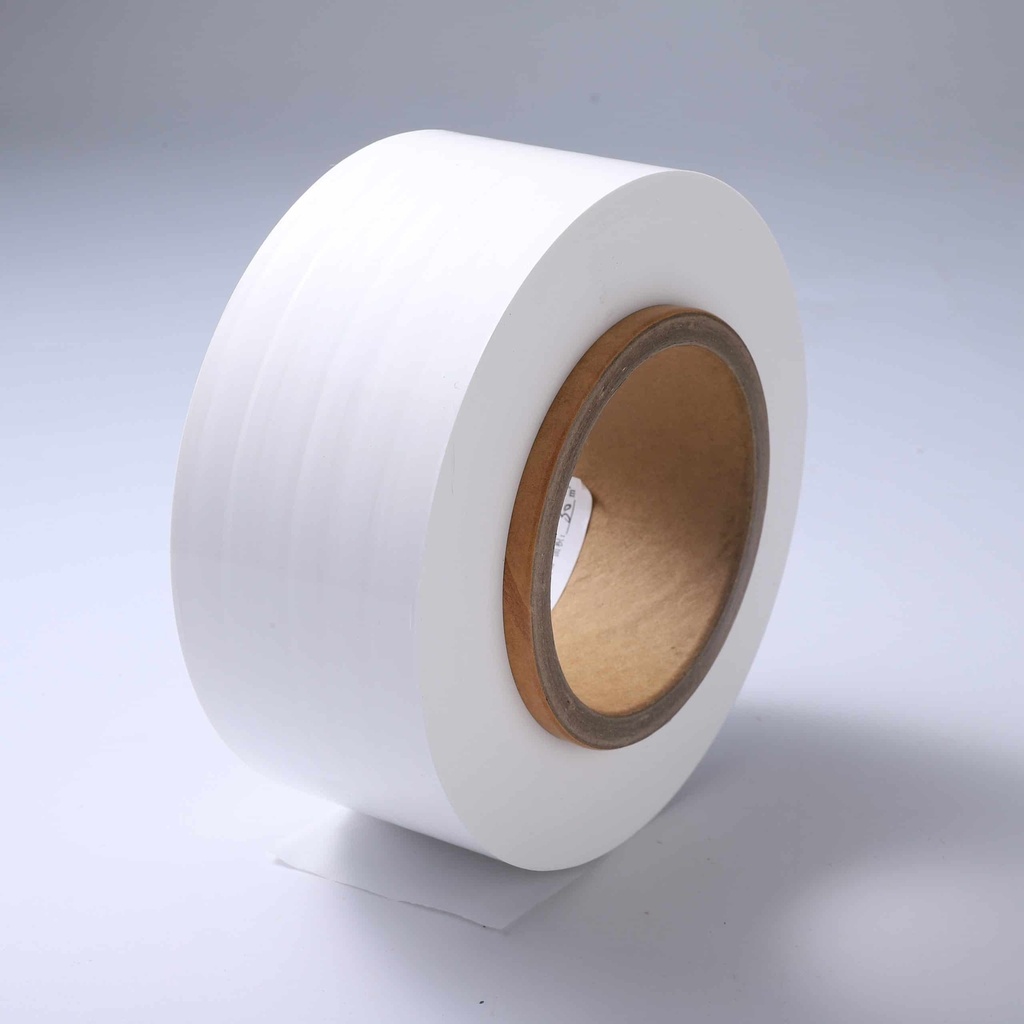

Celgard 2340 - 39um Trilayer PP/PE/PP Separator Roll

https://www.cam-energy.com/web/image/product.template/1948/image_1920?unique=a718df3

Standard roll: 60mm x 20m

Celgard® 2340 - 39um Trilayer PP/PE/PP Separator Roll

Primary Applications

High Energy Lithium Battery Systems; especially safety-critical and performance-critical applications

Product Benefits

  • Zero TD shrinkage reduces internal shorting
  • Uniform pore structure with high chemical & thermal stability
  • Medium porosity provides excellent energy performance with low self-discharge
  • PP outer layer provides high temperature melt integrity, oxidation resistance
  • PE inner layer provides high-speed shutdown features
  • Offers increased energy density and exceptional safety performance

Technical Data (Typical Properties)

Basic Film Properties

Unit of Measure

Typical Value

Thickness

μm

39

Gurley (JIS)

Seconds

780

Porosity (calculated)

%

44

TD Shrinkage @ 105°C / 1 Hour (typical)

%

0

MD Shrinkage @ 105°C / 1 Hour (typical / max)

%

3.5 / 8.0

TD Tensile Strength (typical / min)

Kg/cm2

165 / 100

MD Tensile Strength (typical / min)

Kg/cm2

1630 / 1400

Puncture Strength (typical / min)

Grams Force (gf)

700 / 550


  • width

This combination does not exist.
