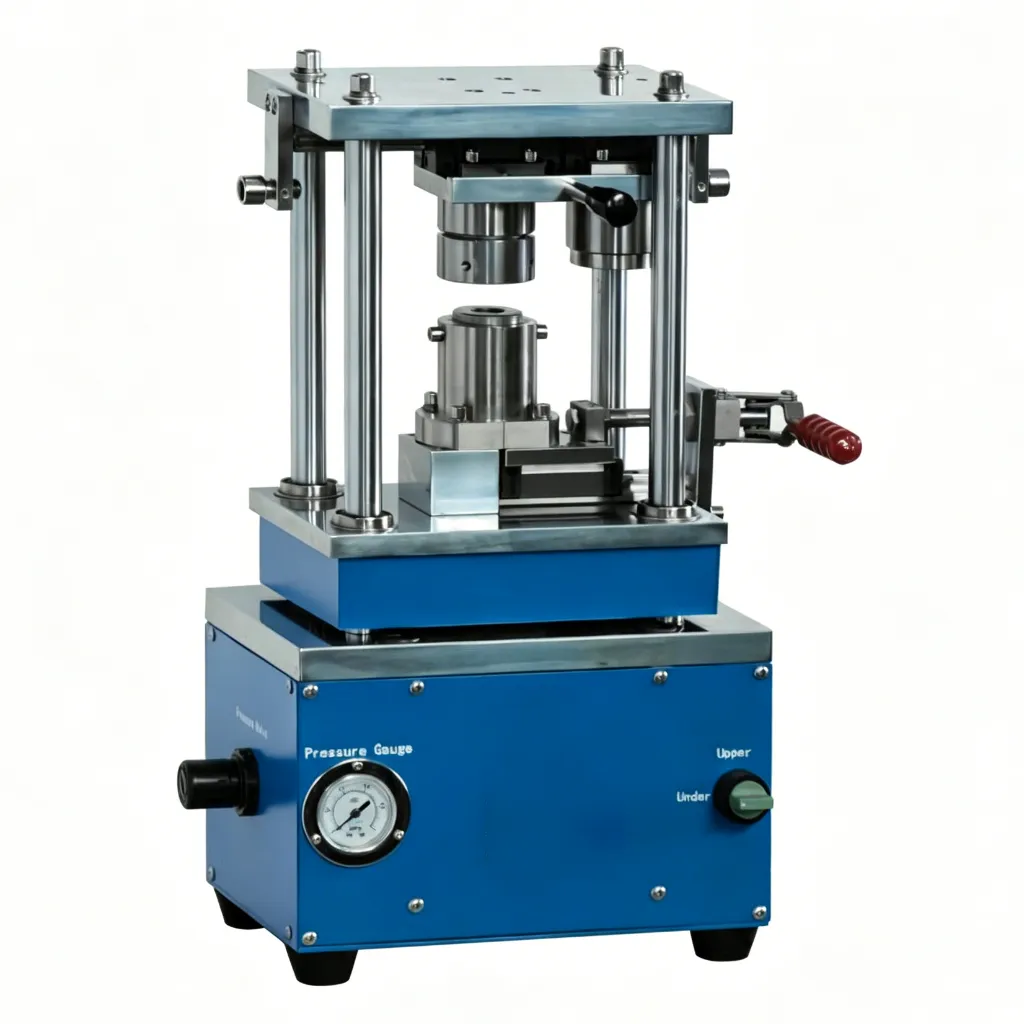

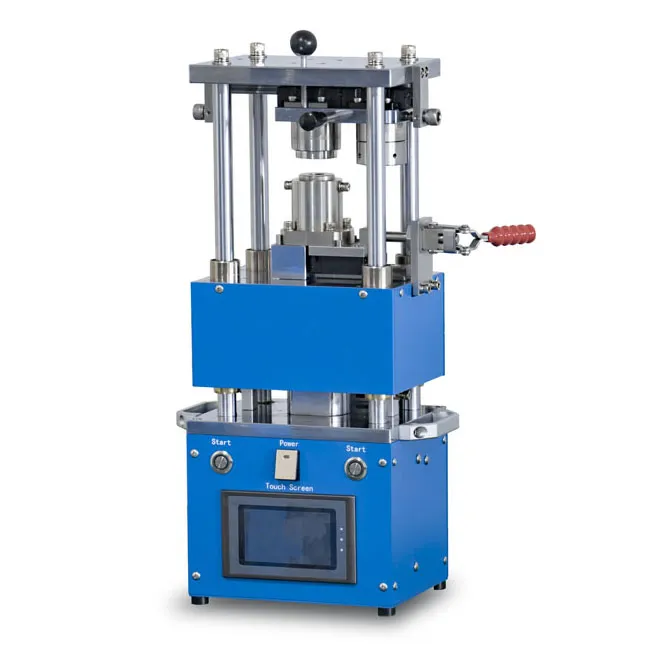

SMCD-18 Electric Cylindrical
Cell Crimping Machine is designed for laboratory battery R&D, materials
research, and pilot-scale prototyping. It provides reliable and uniform sealing
for cylindrical batteries and cylindrical capacitors, and is also suitable for
small-batch trial production thanks to its compact structure and precise
pressure control.
Its small footprint also makes it suitable for use inside
glove boxes or localized dry workstations.
Key Features
Two-step sealing for cylindrical
cells

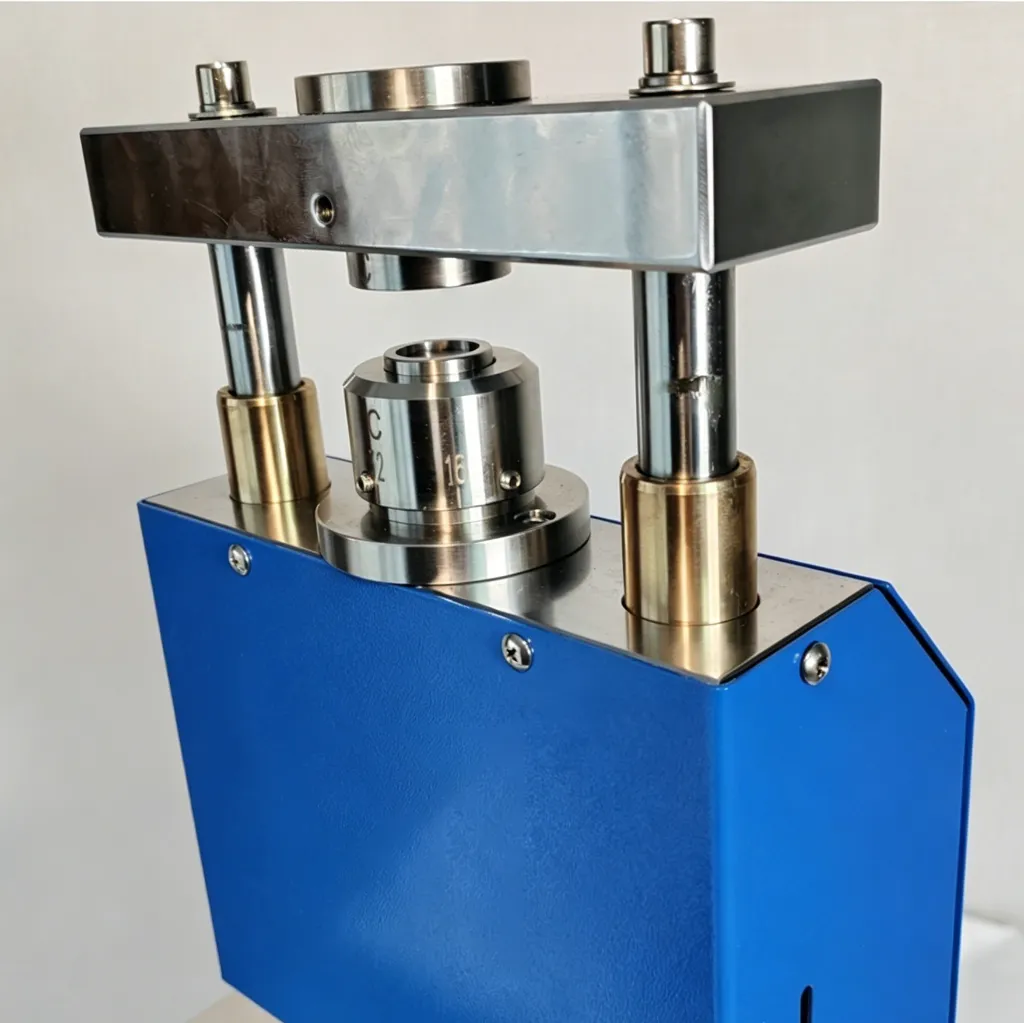

The standard machine
configuration includes one 18650 cylindrical cell sealing die set designed
for a 2-step secondary sealing process, helping improve sealing
consistency and airtightness.
- Digitally controlled electric
crimping
The electric drive system
supports digitally adjustable pressure with real-time display, enabling more
controlled and repeatable sealing operation. - High-force screw-driven
structure
The machine uses a
large-diameter precision lead screw and a rigid steel structure to deliver
stable crimping force for laboratory and pilot-line use. - Uniform pressure application
A flexible pressure-buffering
mechanism helps maintain even sealing force during the crimping process for
improved repeatability. - Compact glove-box-friendly
design
Its compact size makes the
machine suitable for operation inside glove boxes and other space-limited dry
environments. - Interchangeable die
compatibility

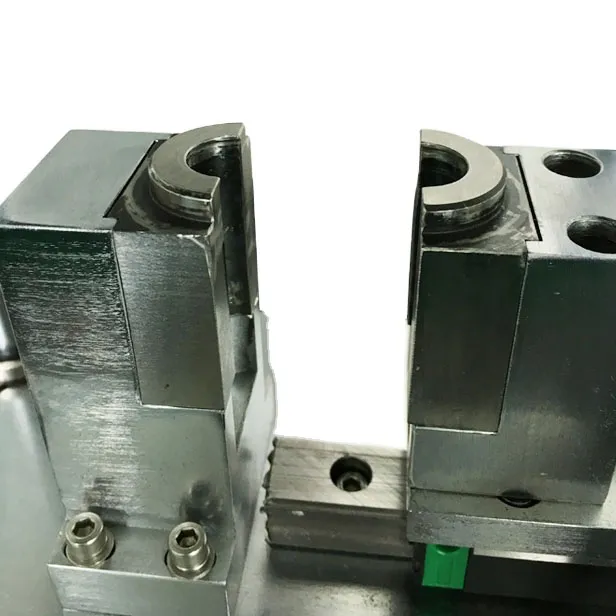

In addition to the standard
18650 die set, the machine can be fitted with quick-change dies for other
cylindrical battery or capacitor formats on request.

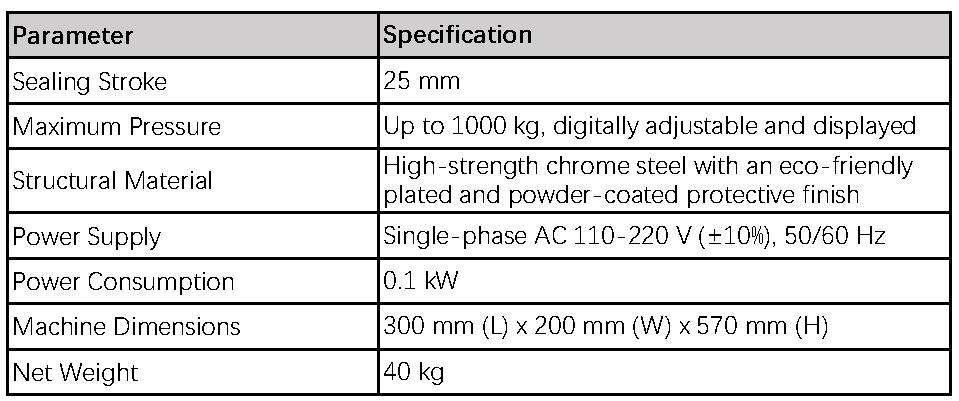

Technical Specifications
Package Contents & Optional Accessories
Standard Package
- 1 × SMCD-18 electric cylindrical cell crimping machine
- 1 × Standard 18650 cylindrical cell sealing die set for 2-step secondary sealing
Optional Accessories
- Quick-change die sets for other cylindrical battery and cylindrical capacitor formats
