Copper foam is a high-purity porous copper material with good thermal and electrical conductivity. It is suitable for use as an electrode substrate in lithium-ion batteries, fuel cells, nickel–zinc batteries, and electric double-layer capacitors. Standard sheets are available in several thicknesses, while dimensions, thickness, pore density, and product form can also be customized for different application requirements.
Key Features
- High Purity: Copper purity of ≥99.99%.

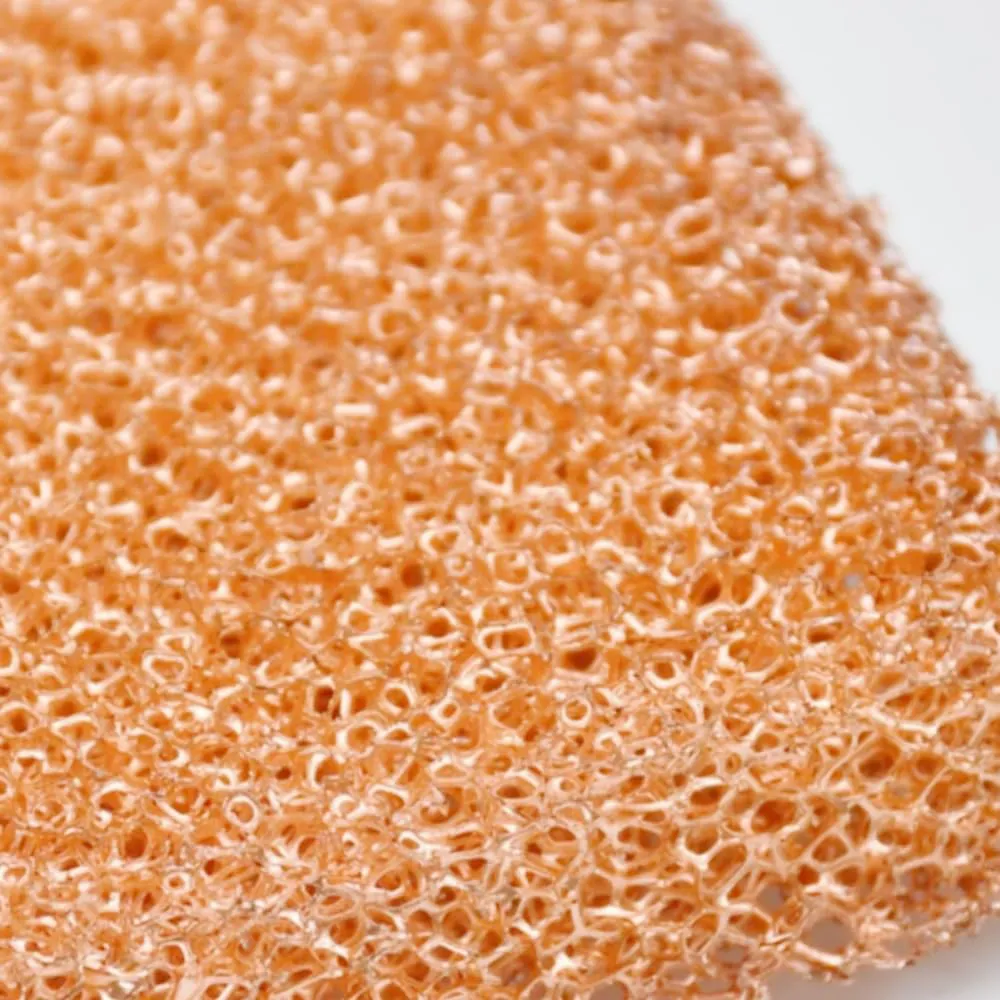

- Highly Porous Structure: Porosity and
through-hole rate above 98%.
- Flexible Configurations: Available in standard
sheet specifications or customized as sheets or rolls.

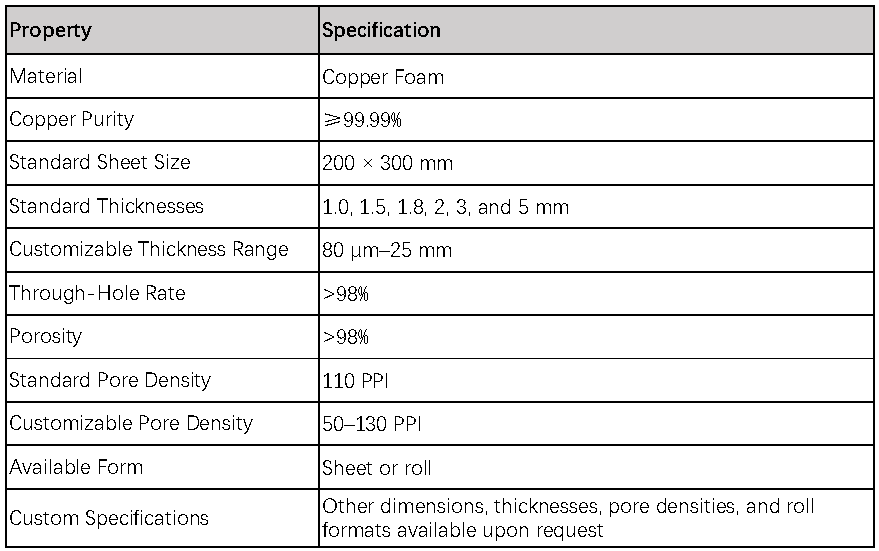

Technical Specifications

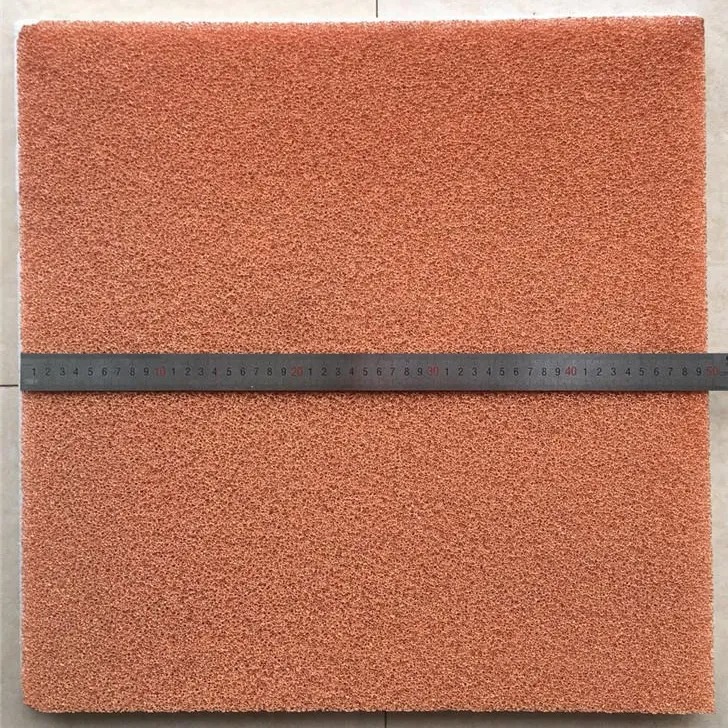

Standard sheet size: 200 × 300 mm.
Select a
standard thickness below.
For other dimensions, thicknesses, pore densities, or
roll formats, please select Custom and contact us for quotation.
